UTL Push-Pull Series Slide 7

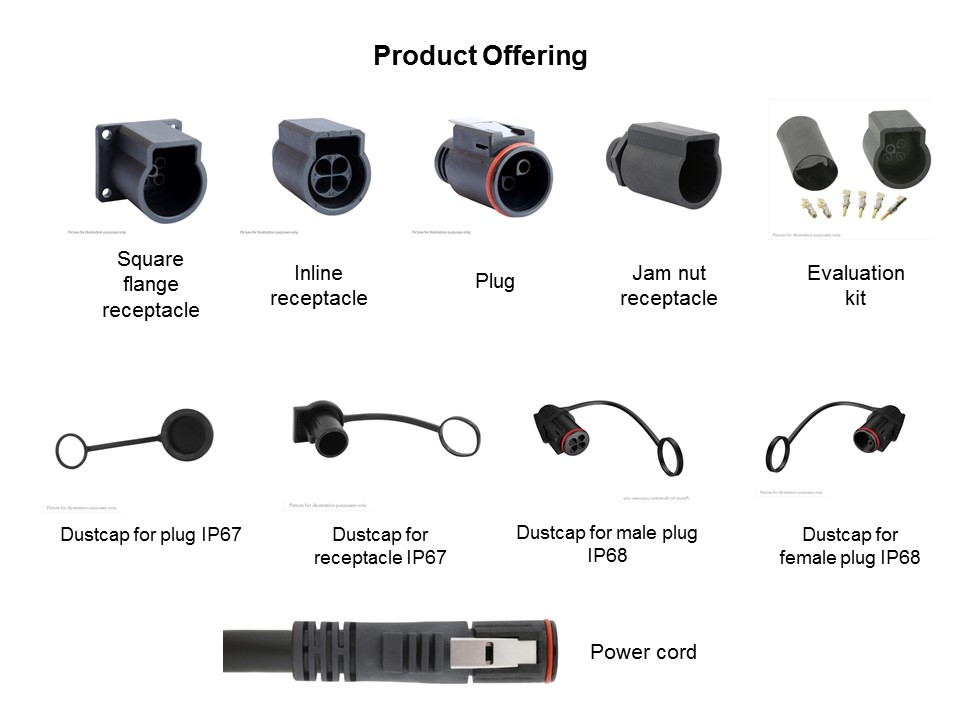

The UTL series offers several types of receptacles including jam nut, square flange, or in-line. The mating plug is also available and can be purchased separately. Contacts are available in stamped and formed or machined standard or sealed for IP68 unmated needs. Other accessories are also available. Ultimately, the product is intended to be overmolded, which provides improved sealing performance. Souriau-Sunbank by Eaton can provide both standard and custom cable assembly solutions, and can accommodate various lengths and wire sizes. If required, plug and receptacle will be equipped with dust caps to protect the installation when the device is not connected.

PTM Published on: 2013-05-30
