UTL Push-Pull Series Slide 10

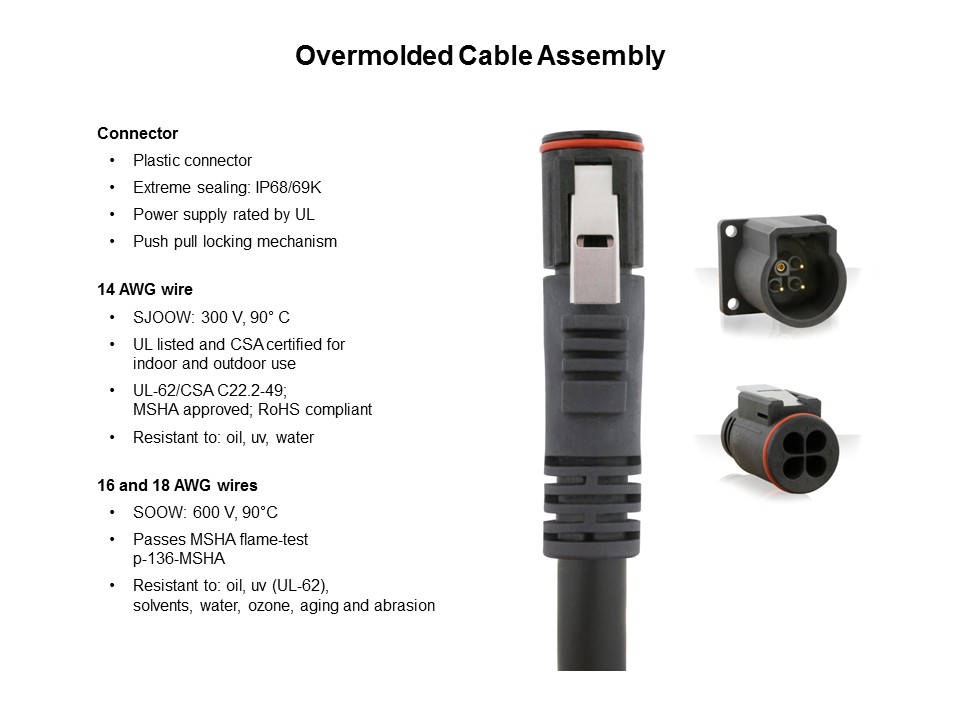

Souriau-Sunbank by Eaton has provided interconnect solutions for more than 90 years and have been used in the most extreme environments and industrial applications. Being conscious about the difficulty in finding a quick and a reliable harness manufacturer, Souriau-Sunbank by Eaton began in-house cable assembly production. Overmolding is a process that further enhances the sealing properties of the UTL range. Overmolding provides the opportunity to change the cable exit from straight to 90 degree exit and avoid stress on the cable termination. Also, the wires are encapsulated inside the overmolding and a barrier is created which prevents any liquid from infiltrating the equipment through the connector if the cable jacket is breached.

PTM Published on: 2013-05-30
