LMR23630AEVM: 3.3 or 5V @ 3A, 4.5 ~ 36V in, Buck

Summary

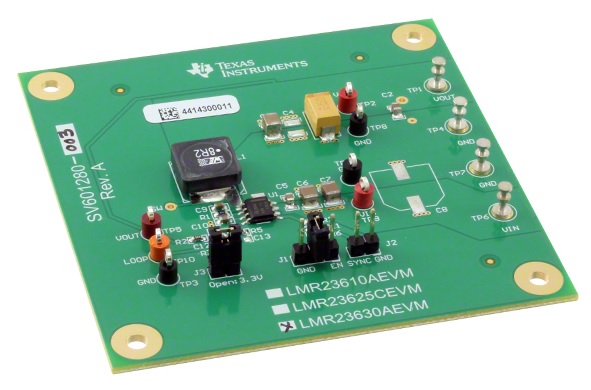

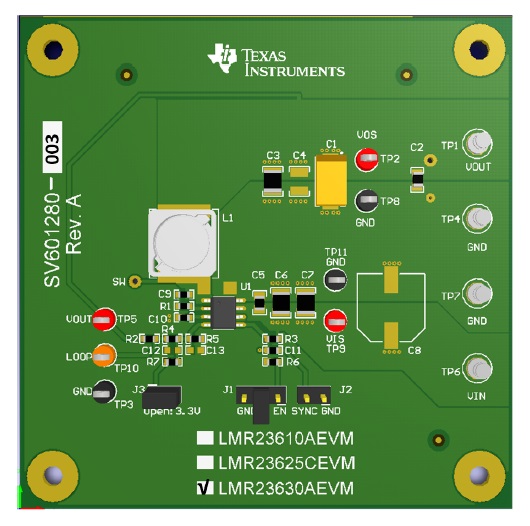

The Texas Instruments LMR23630AEVM evaluation module (EVM) helps designers evaluate the operation and performance of the LMR23630A wide-input Simple Switcher® buck regulator. This document describes the setup and the input / output connections of the EVM. Included are the board layout, schematic, and bill of materials.

The LMR23630 is a 36 V, 3A step-down synchronous regulator with 75µA quiescent current. With a wide input range from 4.5V to 36V, it is suitable for a wide range of applications from automotive to industry for power conditioning from unregulated sources. The LMR23630AEVM evaluation board is designed to provide the design engineer to evaluate the LMR23630 series operation and performance.

Specifications

Manufacturer	Texas Instruments
Category	AC/DC and DC/DC Conversion
Sub-Category	DC/DC SMPS - Single Output
Eval Board Part Number	296-44888-ND
Eval Board Supplier	Texas Instruments
Eval Board	Normally In Stock
Topology	Step Down
Outputs and Type	1 Non-Isolated
Voltage Out: Factory Set	3.3 V 5 V
Current Out	3 A
Voltage In	4.5 ~ 36 V

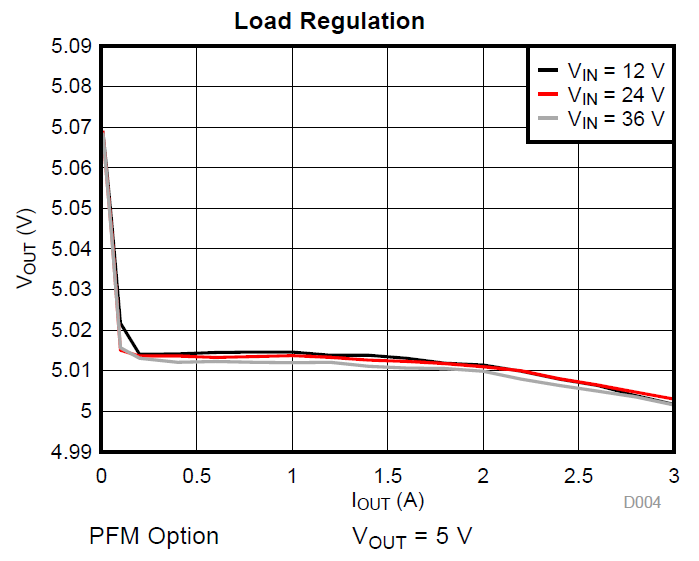

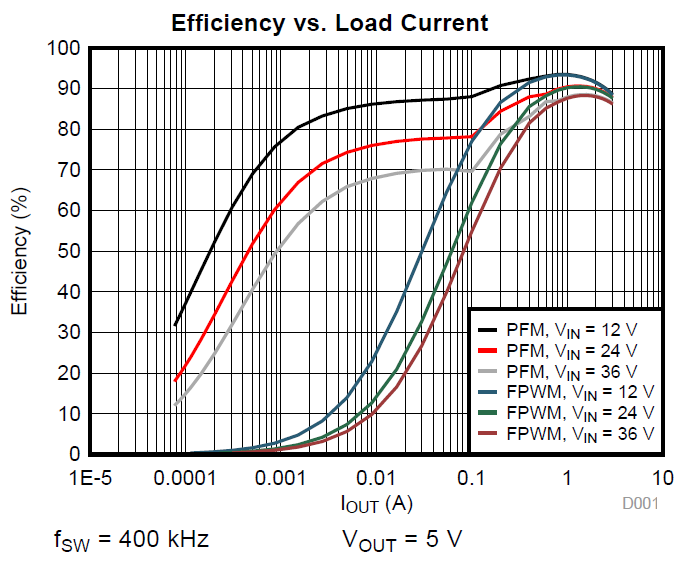

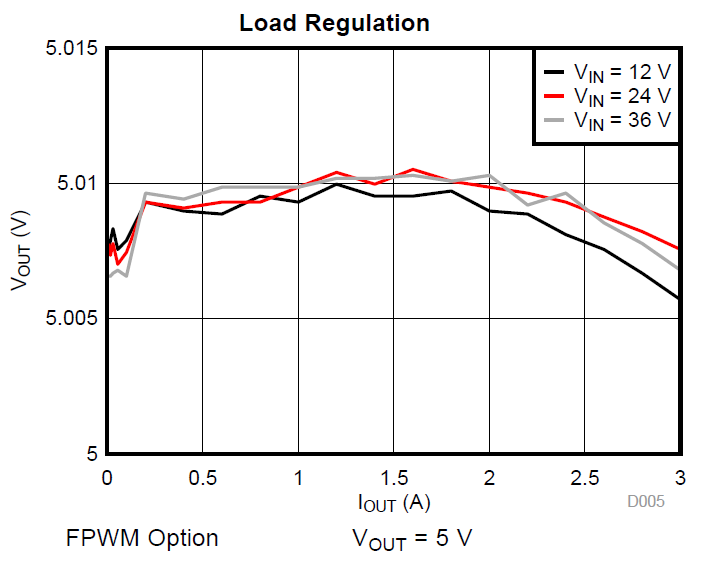

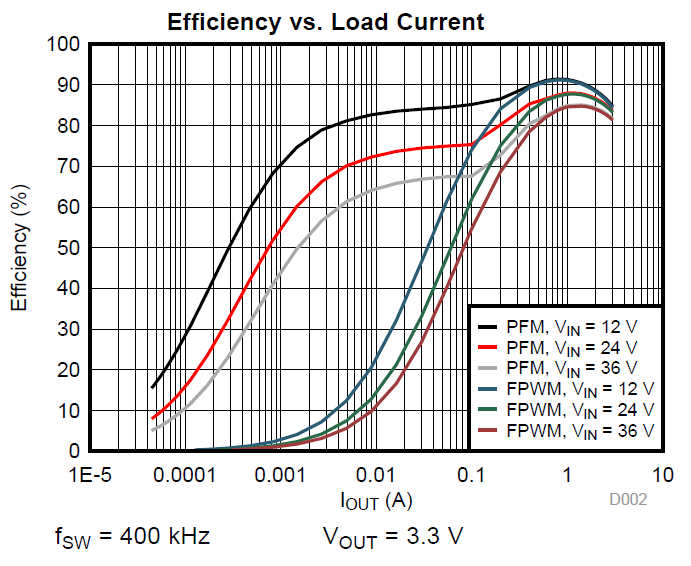

Efficiency @ Conditions	>85%, 12V in, 5 Vo @ 0.004 ~ 3 A >85%, 12V in, 3.3 Vo @ 0.03 ~ 3 A >75%, 24V in, 5 Vo @ 0.007 ~ 3 A >75%, 24V in, 3.3 Vo @ 0.02 ~ 3 A >70%, 36V in, 5 Vo @ 0.003 ~ 3 A >65%, 36V in, 3.3 Vo @ 0.01 ~ 3 A
Voltage Out Range	1 ~ 28 V
Features
Switching Frequency	400 kHz
Standby Current [Typical]	2 µA
Quiescent Current [Typical]	75 µA
Component Count + Extras	18 + 16
Internal Switch	Yes
Design Author	Texas Instruments
Application / Target Market	Automotive Battery Chargers Power: Auxiliary Power Supply Power: Industrial Power Servers Telecom
Standby Current [Maximum]	4 µA
Quiescent Current [Maximum]	- Not Given
Main I.C. Base Part	LMR23630
Date Created By Author	2016-06
Date Added To Library	2017-03
