Design contains obsolete parts

DAK-32: 20W, 3.3V, 5V, 12V, -24V, 85 ~ 265VAC

Summary

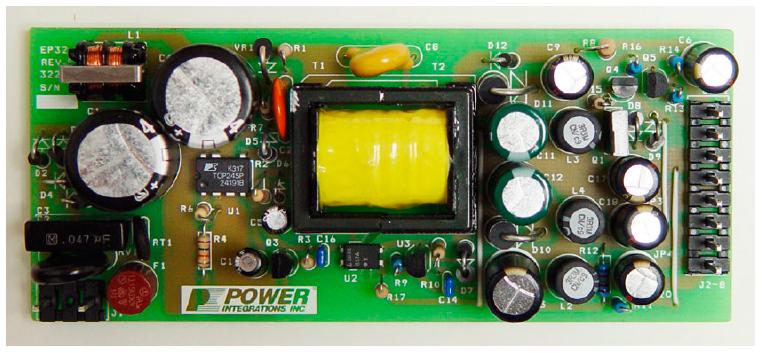

Design Accelerator Kits (DAK) provide all of the essential materials to get you started on your next switch mode power supply design. The kits include a fully assembled and tested prototype power supply board, comprehensive engineering report, product samples, unpopulated circuit board, data sheet and other related documentation.

This document is an engineering report describing the design of an AC-DC power supply with universal input and 4 outputs. The design, rated for 20 W (25 W peak), is implemented using a TOP245P device from the TOPSwitch-GX IC family.

The document contains the power supply specification, schematic, bill of materials, transformer documentation, printed circuit layout, and performance data.

* Based on obsolete kit: DAK-32

Specifications

Manufacturer	Power Integrations
Category	AC/DC and DC/DC Conversion
Sub-Category	AC/DC SMPS - Multi Output
Eval Board Part Number	596-1003-ND
Eval Board Supplier	Power Integrations
Eval Board	Board not Stocked
AC Voltage	115 V 230 V Universal (115 / 230V)
Outputs and Type	4 Isolated
Voltage Out: Highest Current First	5V, 3.3V, 12V, -24V
Current Out	1.2A, 600mA, 200mA, 50mA
Output Power	20 W

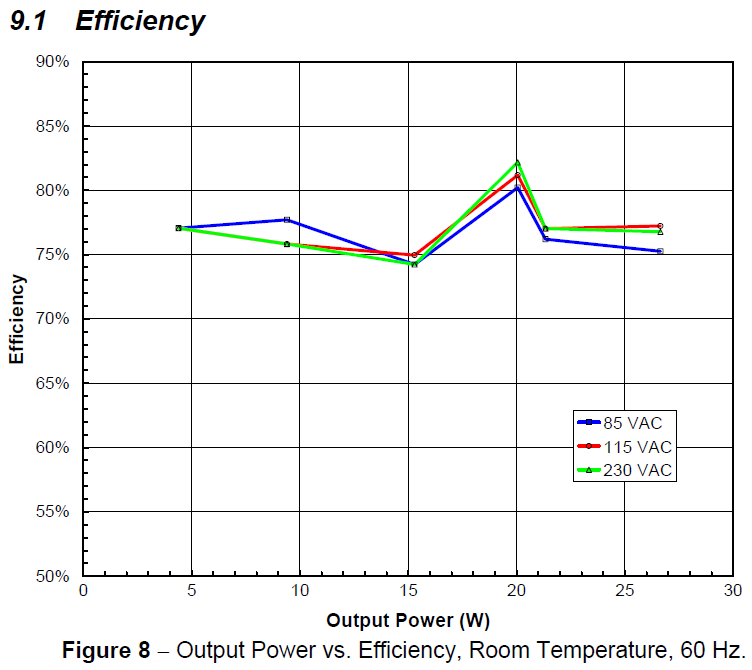

Efficiency @ Conditions	>80%, 85 ~ 230V in @ 20 W

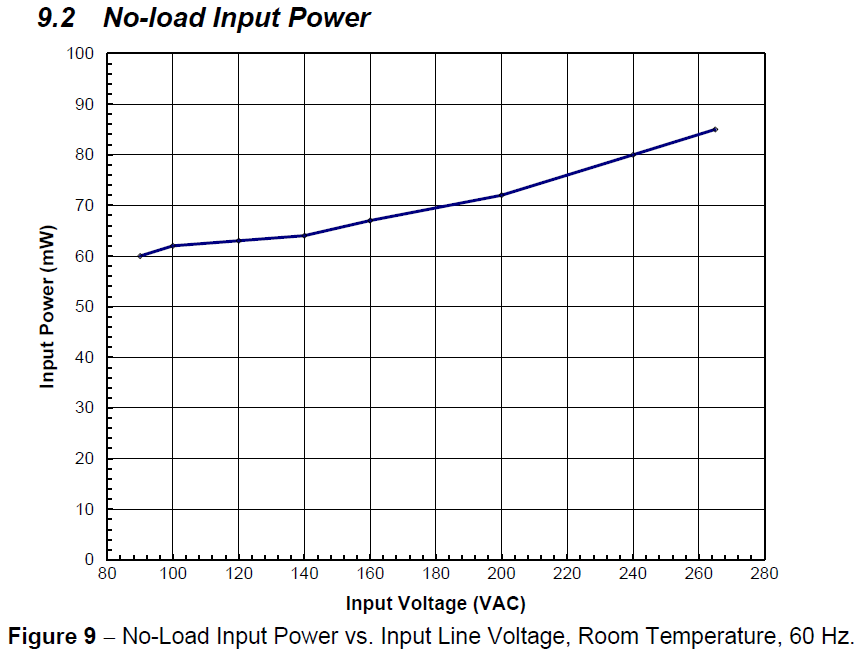

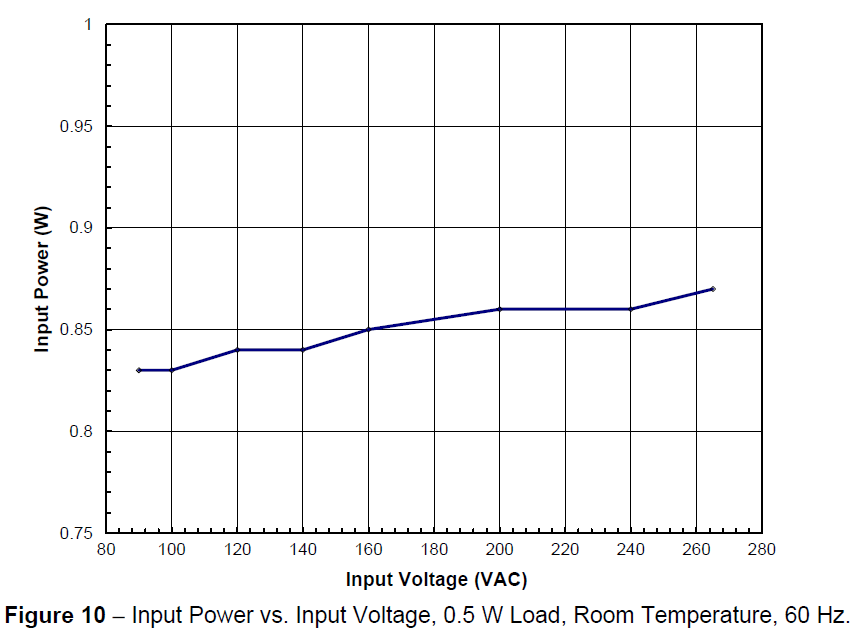

No-load Input Power @ Voltage	64 mW @ 120 V 80 mW @ 240 V

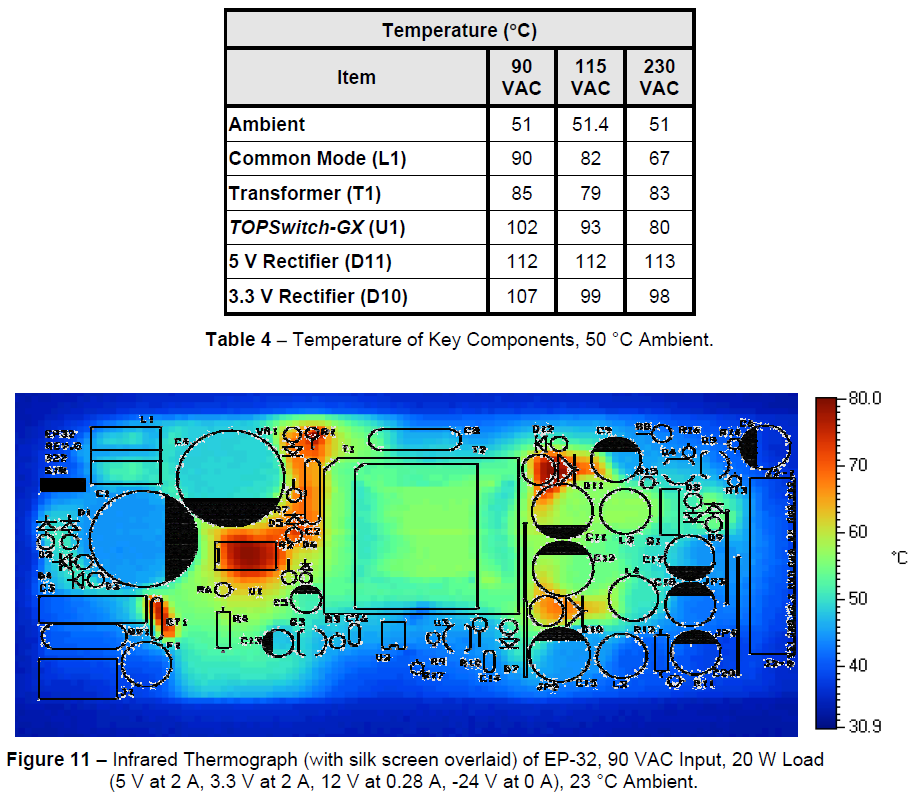

Features	Current Limit (Adj. or Fixed) Frequency Jitter for EMI Over Current Protection Over Voltage Protection Shutdown, Enable, Standby Thermal Protection Under Voltage Protection, Brown-Out
Switching Frequency	132 kHz
Internal Switch	Yes
Component Count + Extras	62 + 2
Voltage In	85 ~ 265 VAC
Application / Target Market	DVD/Blu-ray Players Set-Top Boxes
Design Author	Power Integrations
Main I.C. Base Part	TOP245
Date Created By Author
Date Added To Library	2011-03
