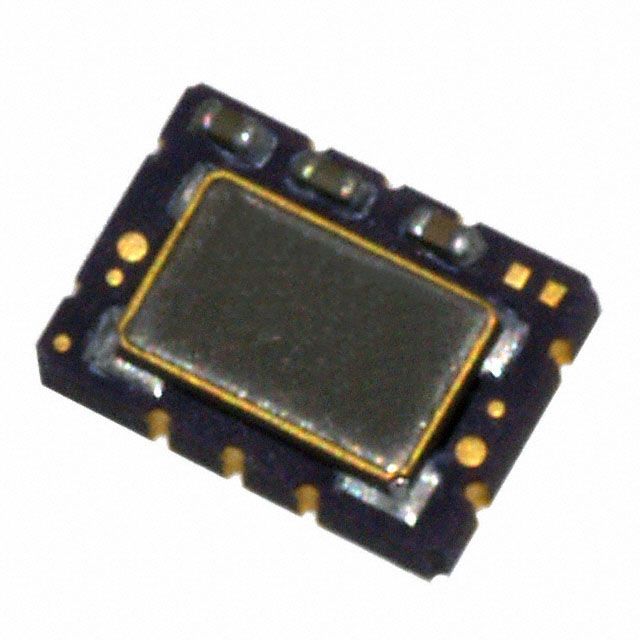

T100-200 10-SMD
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

T100F-020.0M

Digi-Key Part Number
CW758TR-ND - Tape & Reel (TR)
CW758CT-ND - Cut Tape (CT)
CW758DKR-ND - Digi-Reel®
Manufacturer
Connor Winfield
Manufacturer Product Number
T100F-020.0M
Description
XTAL OSC TCXO 20.0000MHZ LVCMOS
Manufacturer Standard Lead Time
18 Weeks
Detailed Description
20 MHz TCXO LVCMOS Oscillator 3.3V Enable/Disable 10-SMD, No Lead
Customer Reference
Datasheet
 Datasheet
Product Attributes
Type
Description
Select All
Category
Mfr
Connor Winfield
Series
T100/200
Package
Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
Product Status
Active
Base Resonator
Crystal
Type
TCXO
Frequency
20 MHz
Function
Enable/Disable
Output
LVCMOS
Voltage - Supply
3.3V
Frequency Stability
±100ppb
Absolute Pull Range (APR)
-
Operating Temperature
0°C ~ 70°C
Current - Supply (Max)
2.1mA
Ratings
-
Mounting Type
Surface Mount
Package / Case
10-SMD, No Lead
Size / Dimension
0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max)
0.094" (2.40mm)
Current - Supply (Disable) (Max)
-
Documents & Media
Resource TypeLink
DatasheetsT/TV100,200 Series Datasheet
Featured ProductT100 Series TCXO and VCTCXO Oscillators
PCN Design/SpecificationMult Devs Marking 01/Dec/2023
HTML DatasheetT/TV100,200 Series Datasheet
Environmental & Export Classifications
AttributeDescription
RoHS StatusROHS3 Compliant
Moisture Sensitivity Level (MSL)1 (Unlimited)
REACH StatusREACH Unaffected
ECCNEAR99
HTSUS8542.39.0001
Quantity
All prices are in USD
Cut Tape (CT) & Digi-Reel®
QtyUnit PriceExt Price
1$27.27000$27.27
10$25.45200$254.52
50$24.99760$1,249.88
100$24.17940$2,417.94
* All Digi-Reel orders will add a $7.00 reeling fee.
Tape & Reel (TR)
QtyUnit PriceExt Price
250$24.17940$6,044.85
Manufacturers Standard Package
You May Also Be Interested InSee All 4
Additional Resources
AttributeDescription
Other Names
CW758CT
CW758TR
CW758DKR
T100F020.0M
Standard Package250
