Marketplace Product
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
750313638 | ||
|---|---|---|
Digi-Key Part Number | 1297-1105-2-ND - Tape & Reel (TR) 1297-1105-1-ND - Cut Tape (CT) 1297-1105-6-ND - Digi-Reel® | |
Manufacturer | ||
Manufacturer Product Number | 750313638 | |

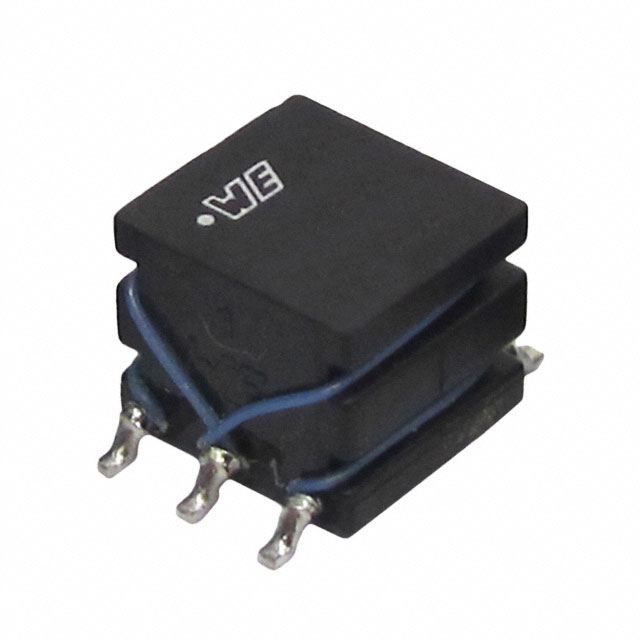

Description | TRANSFORMER SMD | |
Manufacturer Standard Lead Time | 17 Weeks | |
Detailed Description | Forward, Push-Pull Converters For For DC/DC Converters SMPS Transformer 5000Vrms Isolation Surface Mount | |
| Customer Reference | ||
| Datasheet | Datasheet | |
Product Attributes
Type | Description | Select All |
|---|---|---|
Category | ||
Mfr | Würth Elektronik | |
Series | ||
Package | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® | |
Product Status | Active | |
Type | For DC/DC Converters | |
Applications | Forward, Push-Pull Converters | |
Intended Chipset | SN6501 | |
Chipset Manufacturer | Texas Instruments | |
Voltage - Primary | - | |
Voltage - Auxiliary | - | |
Voltage - Isolation | 5000Vrms | |
Inductance @ Frequency | 340µH @ 100kHz | |
Frequency | - | |
Operating Temperature | -40°C ~ 125°C | |
Mounting Type | Surface Mount | |
Size / Dimension | 0.360" L x 0.315" W (9.14mm x 8.00mm) | |
Height - Seated (Max) | 0.305" (7.75mm) | |
Footprint | 0.360" L x 0.500" W (9.14mm x 12.70mm) |
Documents & Media
| Resource Type | Link |
|---|---|
| Environmental Information | RoHS Cert |
| Featured Product | |
| PCN Design/Specification | WE-PPTI MID series Epoxy chg 06/DEC/2019 |
| HTML Datasheet | 750313638 Drawing |
| EDA Models | 750313638 by Ultra Librarian |
| Product Drawings | 750313638 Drawing |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8504.31.2000 |
21,334 In Stock
All prices are in USD
Cut Tape (CT) & Digi-Reel®
| Qty | Unit Price | Ext Price |
|---|---|---|
| 1 | $3.25000 | $3.25 |
| 10 | $3.21200 | $32.12 |
| 50 | $3.01200 | $150.60 |
| 100 | $2.71000 | $271.00 |
Tape & Reel (TR)
| Qty | Unit Price | Ext Price |
|---|---|---|
| 500 | $2.40900 | $1,204.50 |
Manufacturers Standard Package
Additional Resources
| Attribute | Description |
|---|---|
| Other Names | 1297-1105-2 1297-1105-6 750313638-ND 1297-1105-1 |
| Standard Package | 500 |
