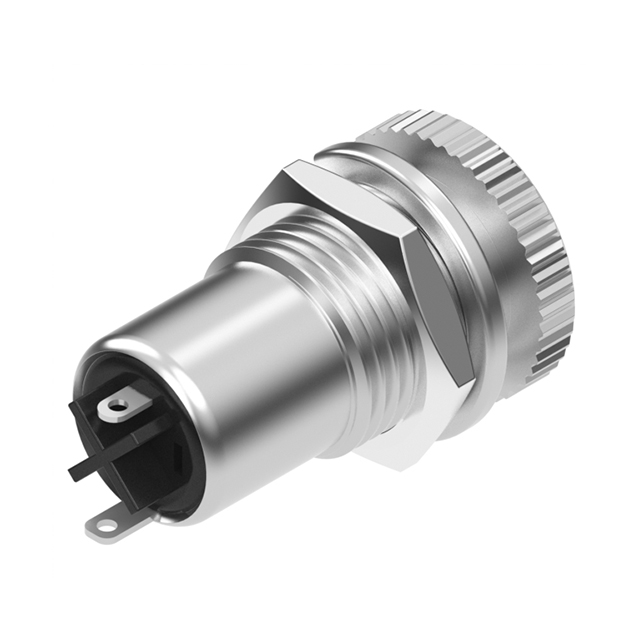

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
54-00080 | ||
|---|---|---|
Digi-Key Part Number | 839-1410-ND | |
Manufacturer | ||
Manufacturer Product Number | 54-00080 | |
Description | CONN JACK PNL MNT 3.5MM MONO | |
Manufacturer Standard Lead Time | 16 Weeks | |
Detailed Description | 3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Mono Connector Solder Eyelet(s) | |
| Customer Reference | ||
| Datasheet | Datasheet | |
Product Attributes
Type | Description | Select |
|---|---|---|
Category | ||
Mfr | ||
Series | - | |
Package | Bulk | |
Product Status | Active | |
Connector Type | Phone Jack | |
Gender | Female | |
Signal Lines | Mono | |
Industry Recognized Mating Diameter | ||
Actual Diameter | 0.142" (3.60mm) | |
Number of Positions/Contacts | 2 Conductors, 2 Contacts | |
Internal Switch(s) | Does Not Contain Switch | |
Mounting Type | Panel Mount | |
Termination | Solder Eyelet(s) | |
Shielding | Unshielded | |
Features | Mounting Hardware | |
Insulation Color | Black | |
Operating Temperature | -25°C ~ 85°C | |
Voltage - Rated | 30VDC | |
Current Rating (Amps) | 300 mA | |
Mating Length/Depth | - | |
Contact Material - Plating | Nickel | |
Body Material | - | |
Body Color | Silver | |
Includes | 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut | |
Housing Material | Brass | |
Contact Material | Phosphor Brass | |
Cable Opening | - | |
Panel Hole Size | 0.362" ~ 0.413" (9.20mm ~ 10.50mm) | |
Thread Size | M9x0.75 |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheets | 54-00080 |
| Environmental Information | RoHS 54-00080 |
| CAD Models | 54-00080.stp |
| HTML Datasheet | 50-00502 Datasheet |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8536.69.4030 |
| California Prop 65 |  Warning Information |
8,186 In Stock
All prices are in USD
Bulk
| Qty | Unit Price | Ext Price |
|---|---|---|
| 1 | $2.57000 | $2.57 |
| 10 | $2.23300 | $22.33 |
| 25 | $2.13840 | $53.46 |
| 50 | $2.09100 | $104.55 |
| 100 | $1.99590 | $199.59 |
| 250 | $1.80580 | $451.45 |
| 500 | $1.66324 | $831.62 |
| 1,000 | $1.42563 | $1,425.63 |
| 2,500 | $1.33059 | $3,326.47 |
Manufacturers Standard Package
.jpg "54-00172")
Additional Resources
| Attribute | Description |
|---|---|
| Other Names | 839-1410 |
| Standard Package | 250 |
