NLV32T-180J-PF | ||
|---|---|---|
Digi-Key Part Number | 445-180209-2-ND - Tape & Reel (TR) 445-180209-1-ND - Cut Tape (CT) 445-180209-6-ND - Digi-Reel® | |
Manufacturer | ||
Manufacturer Product Number | NLV32T-180J-PF | |
Description | FIXED IND 18UH 120MA 3.3 OHM SMD | |
Detailed Description | 18 µH Unshielded Drum Core, Wirewound Inductor 120 mA 3.3Ohm Max 1210 (3225 Metric) | |
Customer Reference | ||
Datasheet | Datasheet | |
EDA/CAD Models | NLV32T-180J-PF Models | |
Product Attributes
Type | Description | Select All |
|---|---|---|
Category | ||
Mfr | ||
Series | ||
Package | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® | |
Product Status | Not For New Designs | |
Type | Drum Core, Wirewound | |
Material - Core | ||
Inductance | 18 µH | |
Tolerance | ±5% | |
Current Rating (Amps) | ||
Current - Saturation (Isat) | - | |
Shielding | Unshielded | |
DC Resistance (DCR) | 3.3Ohm Max | |
Q @ Freq | 30 @ 2.52MHz | |
Frequency - Self Resonant | 20MHz | |
Ratings | - | |
Operating Temperature | -40°C ~ 105°C | |
Inductance Frequency - Test | 2.52 MHz | |
Mounting Type | Surface Mount | |
Package / Case | 1210 (3225 Metric) | |
Supplier Device Package | 1210 | |
Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) | |
Height - Seated (Max) | 0.094" (2.40mm) |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheets | NLV32-PF Series Commercial |
| Product Training Modules | SMD Inductors |
| Environmental Information | TDK Corporation Environment Page |
| PCN Part Status Change | Multiple Devices NRND 27/Mar/2018 |
| HTML Datasheet | NLV32-PF Series Commercial |
| EDA Models | NLV32T-180J-PF Models |

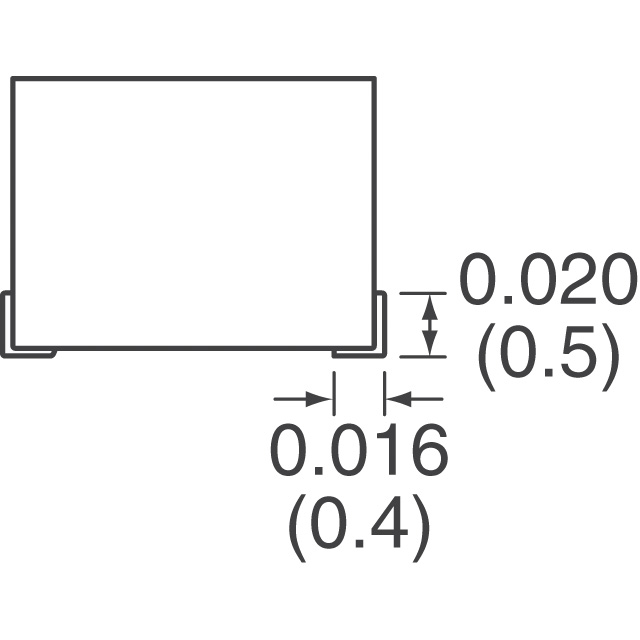

| Product Drawings |
