Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
MMZ1005Y301CT000 | ||
|---|---|---|
Digi-Key Part Number | 445-2154-2-ND - Tape & Reel (TR) 445-2154-1-ND - Cut Tape (CT) 445-2154-6-ND - Digi-Reel® | |
Manufacturer | ||
Manufacturer Product Number | MMZ1005Y301CT000 | |
Description | FERRITE BEAD 300 OHM 0402 1LN | |
Manufacturer Standard Lead Time | 10 Weeks | |
Detailed Description | 300 Ohms @ 100 MHz 1 Signal Line Ferrite Bead 0402 (1005 Metric) 250mA 380mOhm | |
| Customer Reference | ||
| Datasheet | Datasheet | |
Product Attributes
Type | Description | Select All |
|---|---|---|
Category | ||
Mfr | TDK Corporation | |
Series | ||
Package | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® | |
Product Status | Active | |
Filter Type | Signal Line | |
Number of Lines | 1 | |
Impedance @ Frequency | 300 Ohms @ 100 MHz | |
Current Rating (Max) | 250mA | |
DC Resistance (DCR) (Max) | 380mOhm | |
Ratings | - | |
Operating Temperature | -55°C ~ 125°C | |
Package / Case | 0402 (1005 Metric) | |
Mounting Type | Surface Mount | |
Height (Max) | 0.022" (0.55mm) | |

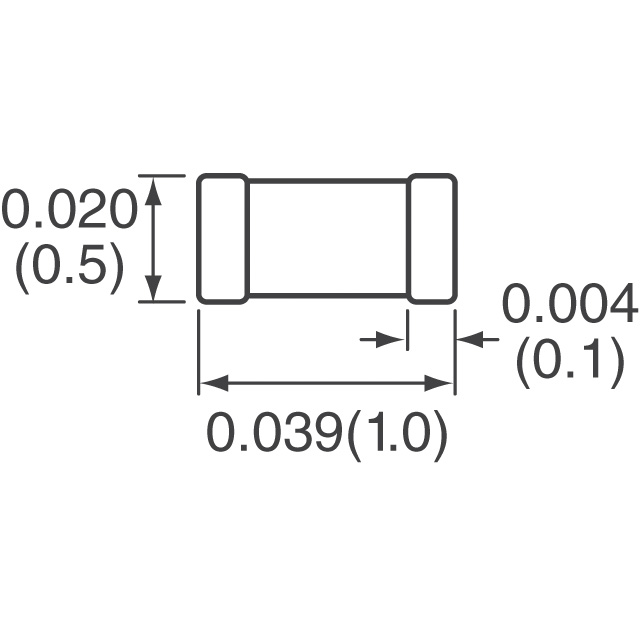

Size / Dimension | 0.039" L x 0.020" W (1.00mm x 0.50mm) |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheets | |
| Product Training Modules | EMC Components |
| Environmental Information | TDK Corporation Environment Page |
| PCN Part Number | MMZ,MPS Series Oct/2014 |
| HTML Datasheet | |
| EDA Models | MMZ1005Y301C by Ultra Librarian |
| Product Drawings | |
| Forum Discussions | TDK Corporation MMZ and MPZ Series Ferrite Beads Part Number Breakdown |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8548.00.0000 |
50,059 In Stock
All prices are in USD
Cut Tape (CT) & Digi-Reel®
| Qty | Unit Price | Ext Price |
|---|---|---|
| 1 | $0.10000 | $0.10 |
| 10 | $0.06500 | $0.65 |
| 25 | $0.05880 | $1.47 |
| 50 | $0.05300 | $2.65 |
| 100 | $0.03880 | $3.88 |
| 250 | $0.02824 | $7.06 |
| 500 | $0.02588 | $12.94 |
| 1,000 | $0.02234 | $22.34 |
| 5,000 | $0.01764 | $88.20 |
Tape & Reel (TR)
| Qty | Unit Price | Ext Price |
|---|---|---|
| 10,000 | $0.01705 | $170.50 |
| 20,000 | $0.01646 | $329.20 |
| 30,000 | $0.01529 | $458.70 |
| 50,000 | $0.01511 | $755.50 |
Manufacturers Standard Package
Additional Resources
| Attribute | Description |
|---|---|
| Other Names | ACZ1005Y-301 MMZ1005Y-301C ACZ1005Y-301-ND MMZ1005Y-301C-ND 445-2154-6 445-2154-2 MMZ1005Y301C-ND MMZ1005Y301C 445-2154-1 |
| Standard Package | 10,000 |
