WSP-5708_Front
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
WSP-5708_Front

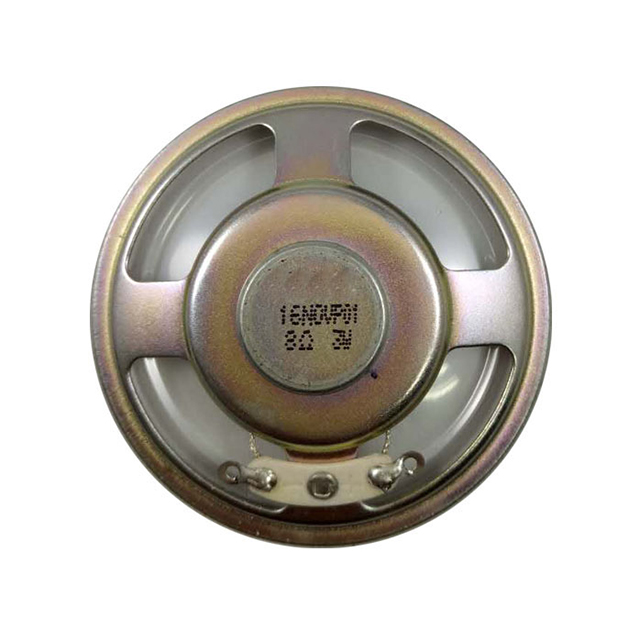

WSP-5708_Back

WSP-5708

Digi-Key Part Number
433-1181-ND
Manufacturer
Soberton Inc.
Manufacturer Product Number
WSP-5708
Description
SPEAKER 8OHM 3W TOP PORT 100DB
Manufacturer Standard Lead Time
7 Weeks
Detailed Description
8 Ohms General Purpose Speaker 3 W 710 Hz ~ 9 kHz Top Round
Customer Reference
Datasheet Datasheet
Product Attributes
Type
Description
Select All
Category
Mfr
Soberton Inc.
Series
-
Package
Tray
Product Status
Active
Technology
Magnetic
Type
General Purpose
Frequency Range
710 Hz ~ 9 kHz
Frequency - Self Resonant
710Hz
Impedance
8 Ohms
Efficiency - dBA
100.00
Efficiency - Testing
100mW/100mm
Efficiency - Type
Sound Pressure Level (SPL)
Power - Rated
3 W
Power - Max
4 W
Port Location
Top
Shape
Round
Material - Cone
-
Material - Magnet
-
Ingress Protection
IP65 - Dust Tight, Water Resistant
Termination
Solder Eyelet(s)
Size / Dimension
2.236" Dia (56.80mm)
Height - Seated (Max)
0.520" (13.20mm)
Documents & Media
Resource TypeLink
DatasheetsWSP-5708 Spec
Environmental Information
Sound File710Hz
Featured ProductWater-Resistant Speakers
HTML DatasheetWSP-5708 Spec
Environmental & Export Classifications
AttributeDescription
RoHS StatusROHS3 Compliant
Moisture Sensitivity Level (MSL)Not Applicable
REACH StatusREACH Unaffected
ECCNEAR99
HTSUS8518.29.8000
6,925 In Stock
All prices are in USD
Tray
QtyUnit PriceExt Price
1$3.90000$3.90
10$3.22200$32.22
25$2.97240$74.31
40$2.79175$111.67
100$2.61780$261.78
300$2.43207$729.62
500$2.25836$1,129.18
Manufacturers Standard Package
Note: Due to Digi-Key value-add services the packaging type may change when product is purchased at quantities beneath the standard package.
You May Also Be Interested InSee All 21
Additional Resources
AttributeDescription
Other Names433-1181
Standard Package100
