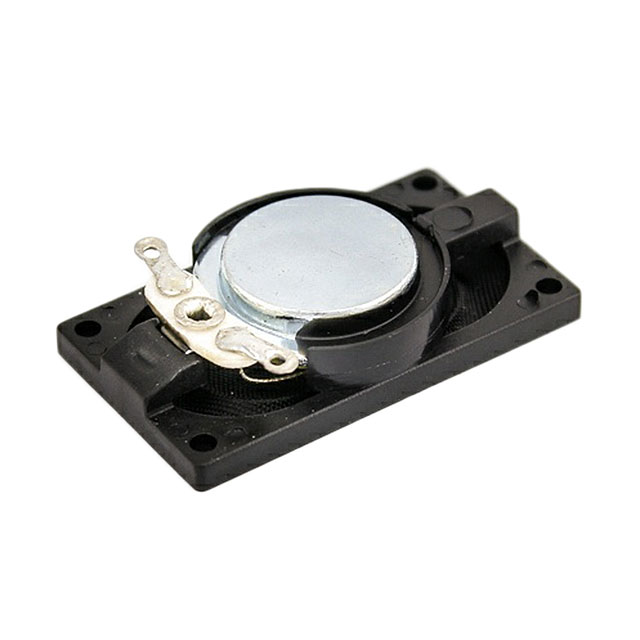

SP-2035_View 2

SP-2035

Digi-Key Part Number
433-1144-ND
Manufacturer
Soberton Inc.
Manufacturer Product Number
SP-2035
Description
SPEAKER 8OHM 1W TOP PORT 85DB
Manufacturer Standard Lead Time
9 Weeks
Detailed Description
8 Ohms General Purpose Speaker 1 W 750 Hz ~ 10 kHz Top Rectangular
Customer Reference
Datasheet
 Datasheet
EDA/CAD Models
SP-2035 Models
Product Attributes
Type
Description
Select All
Category
Mfr
Soberton Inc.
Series
SP Micro Speaker
Package
Tray
Product Status
Active
Technology
Magnetic
Type
General Purpose
Frequency Range
750 Hz ~ 10 kHz
Frequency - Self Resonant
750Hz
Impedance
8 Ohms
Efficiency - dBA
85.00
Efficiency - Testing
1W/500mm
Efficiency - Type
Sound Pressure Level (SPL)
Power - Rated
1 W
Power - Max
1.5 W
Port Location
Top
Shape
Rectangular
Material - Cone
Cloth
Material - Magnet
Nd-Fe-B
Ingress Protection
-
Ratings
-
Termination
Solder Eyelet(s)
Size / Dimension
1.378" L x 0.787" W (35.00mm x 20.00mm)
Height - Seated (Max)
0.299" (7.60mm)
Documents & Media
Resource TypeLink
DatasheetsSP-2035 Spec
Video File
3D Printed Speaker Enclosures from Soberton inc.
Environmental Information
Sound File750Hz
Featured Product
CAD ModelsSP-2035 Models
HTML Datasheet
Product DrawingsSP-2035 Drawing
Environmental & Export Classifications
AttributeDescription
RoHS StatusROHS3 Compliant
Moisture Sensitivity Level (MSL)Not Applicable
REACH StatusREACH Unaffected
ECCNEAR99
HTSUS8518.29.8000
Quantity
All prices are in USD
Tray
QtyUnit PriceExt Price
1$4.01000$4.01
10$3.31500$33.15
25$3.05880$76.47
50$2.87280$143.64
100$2.69390$269.39
250$2.50280$625.70
500$2.32400$1,162.00
Note: Due to Digi-Key value-add services the packaging type may change when product is purchased at quantities beneath the standard package.
Kits
Additional Resources
AttributeDescription
Other Names433-1144
Standard Package200
