E-3304_Front
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
E-3304_Front

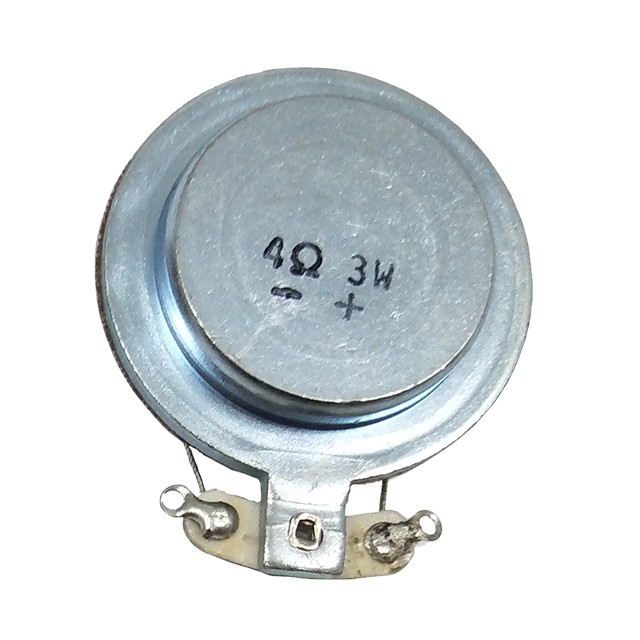

E-3304_Back

E-3304

Digi-Key Part Number
433-1176-ND
Manufacturer
Soberton Inc.
Manufacturer Product Number
E-3304
Description
SPEAKER 4OHM 3W TOP PORT 99DB
Manufacturer Standard Lead Time
3 Weeks
Detailed Description
4 Ohms Exciter Speaker 3 W 640 Hz ~ 8 kHz Top Round
Customer Reference
Datasheet Datasheet
Product Attributes
Type
Description
Select All
Category
Mfr
Soberton Inc.
Series
-
Package
Tray
Product Status
Active
Technology
Magnetic
Type
Exciter
Frequency Range
640 Hz ~ 8 kHz
Frequency - Self Resonant
640Hz
Impedance
4 Ohms
Efficiency - dBA
99.00
Efficiency - Testing
1W/100mm
Efficiency - Type
Sound Pressure Level (SPL)
Power - Rated
3 W
Power - Max
4 W
Port Location
Top
Shape
Round
Material - Cone
-
Material - Magnet
-
Ingress Protection
-
Termination
Solder Eyelet(s)
Size / Dimension
1.299" Dia (33.00mm)
Height - Seated (Max)
0.484" (12.30mm)
Documents & Media
Resource TypeLink
DatasheetsE-3304 Spec
Environmental Information
Featured ProductAudio Exciters
CAD Models
HTML Datasheet
Product DrawingsE-3304 Drawing
Environmental & Export Classifications
AttributeDescription
RoHS StatusROHS3 Compliant
Moisture Sensitivity Level (MSL)Not Applicable
REACH StatusREACH Unaffected
ECCNEAR99
HTSUS8518.29.8000
61 In Stock
All prices are in USD
Tray
QtyUnit PriceExt Price
1$5.83000$5.83
10$4.81000$48.10
30$4.43400$133.02
60$4.16167$249.70
90$3.89967$350.97
450$3.45320$1,553.94
Manufacturers Standard Package
Note: Due to Digi-Key value-add services the packaging type may change when product is purchased at quantities beneath the standard package.
You May Also Be Interested InSee All 9
Kits
Additional Resources
AttributeDescription
Other Names433-1176
Standard Package30
