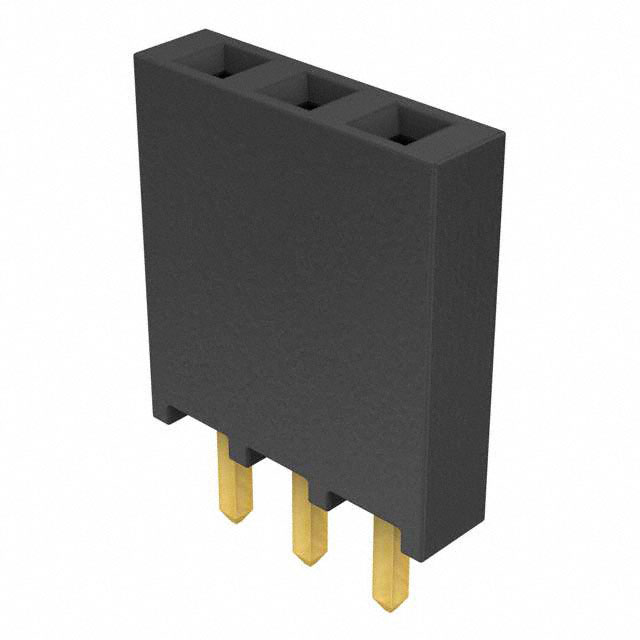

SSQ-103-01-G-S

DigiKey Part Number
SAM1180-03-ND
Manufacturer
Manufacturer Product Number
SSQ-103-01-G-S
Description
CONN RCPT 3POS 0.1 GOLD PCB
Customer Reference
Detailed Description
3 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold
Datasheet
 Datasheet
EDA/CAD Models
SSQ-103-01-G-S Models
Product Attributes
Type
Description
Select All
Category
Mfr
Series
Packaging
Bulk
Part Status
Active
Connector Type
Contact Type
Forked
Style
Board to Board or Cable
Number of Positions
Number of Positions Loaded
All
Pitch - Mating
Number of Rows
1
Row Spacing - Mating
-
Mounting Type
Through Hole
Termination
Fastening Type
Push-Pull
Contact Finish - Mating
Contact Finish Thickness - Mating
20.0µin (0.51µm)
Insulation Color
Black
Insulation Height
0.335" (8.51mm)
Contact Length - Post
0.104" (2.64mm)
Operating Temperature
-55°C ~ 125°C
Material Flammability Rating
UL94 V-0
Contact Finish - Post
Gold
Mated Stacking Heights
-
Ingress Protection
-
Features
-
Current Rating (Amps)
-
Voltage Rating
465VAC, 655VDC
Applications
-
Insulation Material
Liquid Crystal Polymer (LCP)
Contact Shape
Square
Contact Material
Phosphor Bronze
Contact Finish Thickness - Post
3.00µin (0.076µm)
Base Product Number
In-Stock: 1,487
Factory Stock: 3,224
Can ship immediately
All prices are in USD
Bulk
QuantityUnit PriceExt Price
1$1.01000$1.01
10$0.82100$8.21
100$0.66930$66.93
500$0.58026$290.13
1,000$0.54567$545.67
5,000$0.47645$2,382.25
Manufacturers Standard Package
Alternate Length
CONN RCPT 1POS GOLD PCB
In-Stock: 1476
Unit Price: $0.54000
CONN RCPT 2POS 0.1 GOLD PCB
In-Stock: 1552
Unit Price: $0.78000
CONN RCPT 4POS 0.1 GOLD PCB
In-Stock: 1394
Unit Price: $1.23000
CONN RCPT 5POS 0.1 GOLD PCB
In-Stock: 2708
Unit Price: $1.45000
CONN RCPT 6POS 0.1 GOLD PCB
In-Stock: 1578
Unit Price: $1.67000
