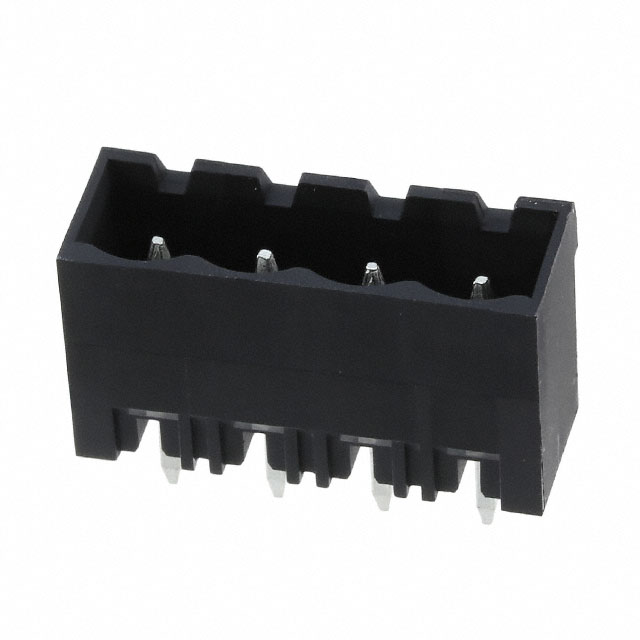

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
5452132 | ||
|---|---|---|
Digi-Key Part Number | 277-11414-ND | |
Manufacturer | ||
Manufacturer Product Number | 5452132 | |
Description | TERM BLOCK HDR 4POS VERT 5MM | |
Manufacturer Standard Lead Time | 18 Weeks | |
Detailed Description | 4 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.197" (5.00mm) Vertical Through Hole | |
| Customer Reference | ||
| Datasheet | Datasheet | |
Product Attributes
Type | Description | Select All |
|---|---|---|
Category | ||
Mfr | Phoenix Contact | |
Series | ||
Package | Bulk | |
Product Status | Active | |
Type | Header, Male Pins, Shrouded (4 Side) | |
Number of Positions | 4 | |
Positions Per Level | 4 | |
Number of Levels | 1 | |
Pitch | 0.197" (5.00mm) | |
Header Orientation | Vertical | |
Plug Wire Entry | - | |
Termination Style | Solder | |
Mounting Type | Through Hole | |
Current - IEC | 12A | |
Voltage - IEC | 320 V | |
Current - UL | 15 A | |
Voltage - UL | 300 V | |
Wire Gauge or Range - AWG | - | |
Wire Gauge or Range - mm² | - | |
Color | Black | |
Operating Temperature | - | |
Contact Mating Finish | Tin | |
Features | - | |
Material Flammability Rating | - | |
Ingress Protection | - | |
Screw Size | - | |
Torque - Screw | - | |
Wire Strip Length | - | |
Contact Material | - | |
Housing Material | - | |
Contact Tail Length | 0.154" (3.90mm) | |
Insulation Height | 0.472" (12.00mm) |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| ECCN | EAR99 |
| HTSUS | 8536.69.4040 |
Available To Order
All prices are in USD
Bulk
| Qty | Unit Price | Ext Price |
|---|---|---|
| 100 | $1.17000 | $117.00 |
Manufacturers Standard Package
Additional Resources
| Attribute | Description |
|---|---|
| Other Names | 277-11414 BCH-500VS- 4 BK 5452132-ND |
| Standard Package | 100 |
