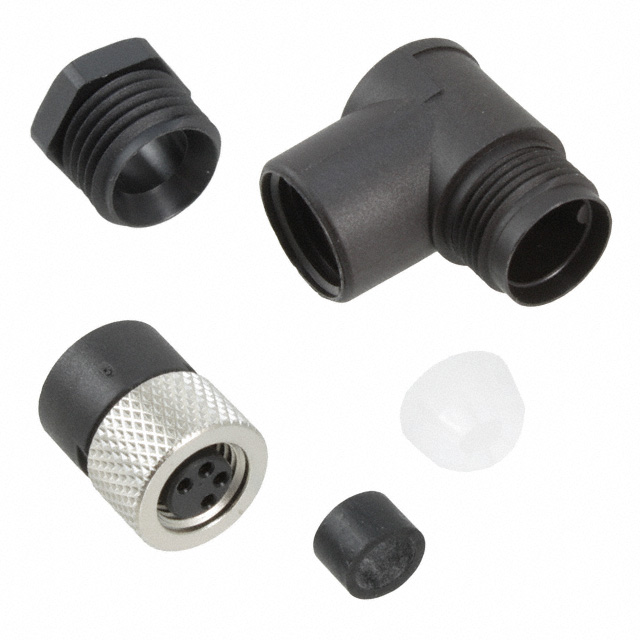

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
1513444 | ||
|---|---|---|
Digi-Key Part Number | 277-4600-ND | |
Manufacturer | ||
Manufacturer Product Number | 1513444 | |
Description | CONN RCPT FMALE 4POS SOLDER CUP | |
Manufacturer Standard Lead Time | 4 Weeks | |
Detailed Description | 4 Position Circular Connector Receptacle, Female Sockets Solder Cup | |
| Customer Reference | ||
| Datasheet | Datasheet | |
Product Attributes
Type | Description | Select All |
|---|---|---|
Category | ||
Mfr | ||
Series | ||
Package | Bulk | |
Product Status | Active | |
Connector Type | ||
Number of Positions | 4 | |
Shell Size - Insert | M8-4 | |
Shell Size, MIL | - | |
Mounting Type | Free Hanging (In-Line), Right Angle | |
Mounting Feature | - | |
Termination | Solder Cup | |
Fastening Type | Threaded | |
Orientation | A | |
Primary Material | Metal | |
Shell Material | Brass | |
Shell Finish | Nickel | |
Contact Finish - Mating | Gold | |
Color | Black, Silver | |
Ingress Protection | IP67 - Dust Tight, Waterproof | |
Material Flammability Rating | UL94 HB | |
Features | Backshell, Coupling Nut | |
Shielding | - | |
Current Rating (Amps) | 4A | |
Voltage Rating | 30VAC/DC | |
Cable Opening | 0.138" ~ 0.197" (3.50mm ~ 5.00mm) | |
Operating Temperature | -40°C ~ 85°C | |
Backshell Material, Plating | Polybutylene Terephthalate (PBT) | |
Contact Material | Copper Zinc | |
Contact Finish Thickness - Mating | - | |
Insert Material | Polyamide (PA), Nylon | |
Applications | - |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheets | 1513444 |
| Environmental Information | Phoenix Contact Product Complaince |
| HTML Datasheet | 1513444 |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| ECCN | EAR99 |
| HTSUS | 8536.69.4020 |
60 In Stock
All prices are in USD
Bulk
| Qty | Unit Price | Ext Price |
|---|---|---|
| 1 | $20.08000 | $20.08 |
| 10 | $18.47700 | $184.77 |
| 50 | $17.07120 | $853.56 |
| 100 | $16.26770 | $1,626.77 |
| 250 | $15.26356 | $3,815.89 |
| 500 | $15.19368 | $7,596.84 |
Manufacturers Standard Package
You May Also Be Interested In
Associated Product
Additional Resources
| Attribute | Description |
|---|---|
| Other Names | 277-4600 1513444-ND SACC-M8FR-4CON-M SACC-M 8FR-4CON-M |
| Standard Package | 1 |
