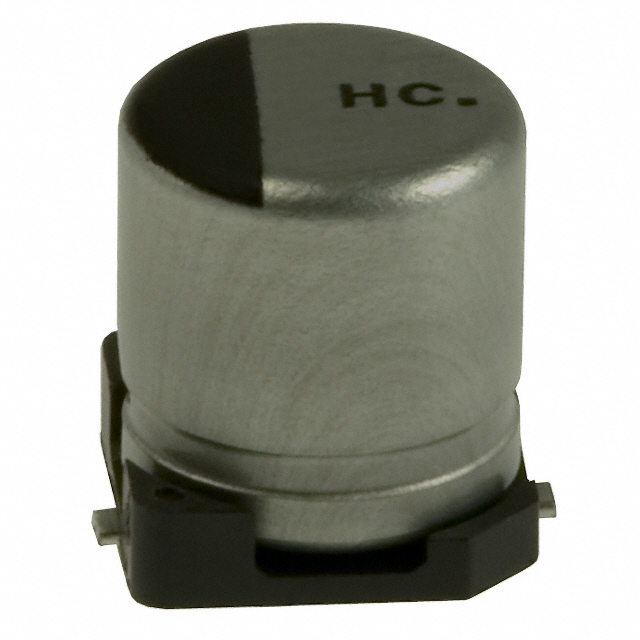

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
EEE-HC1A330R | ||
|---|---|---|
Digi-Key Part Number | PCE3745TR-ND - Tape & Reel (TR) PCE3745CT-ND - Cut Tape (CT) PCE3745DKR-ND - Digi-Reel® | |
Manufacturer | ||
Manufacturer Product Number | EEE-HC1A330R | |
Description | CAP ALUM 33UF 20% 10V SMD | |
Manufacturer Standard Lead Time | 26 Weeks | |
Detailed Description | 33 µF 10 V Aluminum Electrolytic Capacitors Radial, Can - SMD 3000 Hrs @ 105°C | |
| Customer Reference | ||
| Datasheet | Datasheet | |
Product Attributes
Type | Description | Select All |
|---|---|---|
Category | ||
Mfr | ||
Series | ||
Package | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® | |
Product Status | Active | |
Capacitance | ||
Tolerance | ±20% | |
Voltage - Rated | 10 V | |
ESR (Equivalent Series Resistance) | - | |
Lifetime @ Temp. | 3000 Hrs @ 105°C | |
Operating Temperature | -40°C ~ 105°C | |
Polarization | Polar | |
Ratings | AEC-Q200 | |
Applications | Automotive | |
Ripple Current @ Low Frequency | 43 mA @ 120 Hz | |
Ripple Current @ High Frequency | 73.1 mA @ 10 kHz | |
Lead Spacing | - | |
Size / Dimension | 0.197" Dia (5.00mm) | |
Height - Seated (Max) | 0.228" (5.80mm) | |
Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) | |
Mounting Type | ||
Package / Case | Radial, Can - SMD | |
Base Product Number |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheets | EEE-HC1A330R View All Specifications |
| Product Training Modules | LED Lighting Components |
| CAD Models | 5 SIZE CODE C.stp |
| PCN Packaging | Multiple SMD Lytic Series 05/Jul/2017 |
| EDA Models | |
| Product Drawings | |
| Part Numbering Guide | Aluminum Elect Caps, Part Number System |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8532.22.0020 |
2,900 In Stock
All prices are in USD
Cut Tape (CT) & Digi-Reel®
| Qty | Unit Price | Ext Price |
|---|---|---|
| 1 | $0.37000 | $0.37 |
| 10 | $0.25900 | $2.59 |
| 50 | $0.18100 | $9.05 |
| 100 | $0.15510 | $15.51 |
| 500 | $0.11636 | $58.18 |
Tape & Reel (TR)
| Qty | Unit Price | Ext Price |
|---|---|---|
| 1,000 | $0.09825 | $98.25 |
| 2,000 | $0.09308 | $186.16 |
| 5,000 | $0.08791 | $439.55 |
| 10,000 | $0.08274 | $827.40 |
| 25,000 | $0.07757 | $1,939.25 |
| 50,000 | $0.07240 | $3,620.00 |
| 100,000 | $0.06723 | $6,723.00 |
Manufacturers Standard Package
Additional Resources
| Attribute | Description |
|---|---|
| Other Names | EEEHC1A330R PCE3745TR PCE3745CT PCE3745DKR |
| Standard Package | 1,000 |
