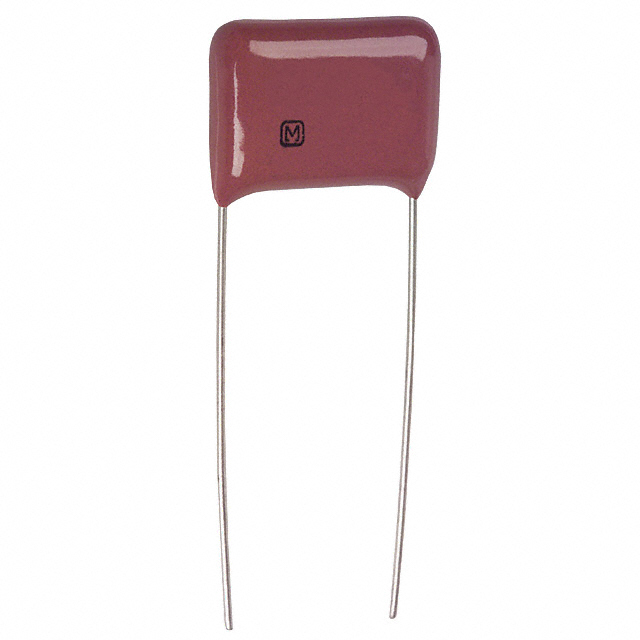

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
ECQ-U2A103MN | ||
|---|---|---|
Digi-Key Part Number | P4601-ND | |
Manufacturer | ||
Manufacturer Product Number | ECQ-U2A103MN | |
Description | CAP FILM 10000PF 20% 250VAC RAD | |
Detailed Description | 10000 pF Film Capacitor 250V Polyester Radial | |
| Customer Reference | ||
| Datasheet | Datasheet | |
Product Attributes
Type | Description | Select All |
|---|---|---|
Category | ||
Mfr | ||
Series | ||
Package | Bulk | |
Product Status | Obsolete | |
Capacitance | ||
Tolerance | ±20% | |
Voltage Rating - AC | 250V | |
Voltage Rating - DC | - | |
Dielectric Material | ||
Operating Temperature | -40°C ~ 85°C | |
Mounting Type | Through Hole | |
Package / Case | ||
Size / Dimension | 0.669" L x 0.276" W (17.00mm x 7.00mm) | |
Height - Seated (Max) | 0.610" (15.50mm) | |
Termination | PC Pins | |
Lead Spacing | 0.531" (13.50mm) | |
Applications | EMI, RFI Suppression | |
Ratings | X2 | |
Features | - | |
Base Product Number |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheets | ECQUN [Class X2] |
| PCN Obsolescence/ EOL | ECQ-U(N) Series 30/Jan/2012 |
| HTML Datasheet | ECQUN [Class X2] |
| EDA Models | ECQU2A103MN by Ultra Librarian |
| Product Drawings |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8532.25.0010 |
Obsolete
Additional Resources
| Attribute | Description |
|---|---|
| Other Names | ECQU2A103MN P4601 Q659008 |
| Standard Package | 100 |
