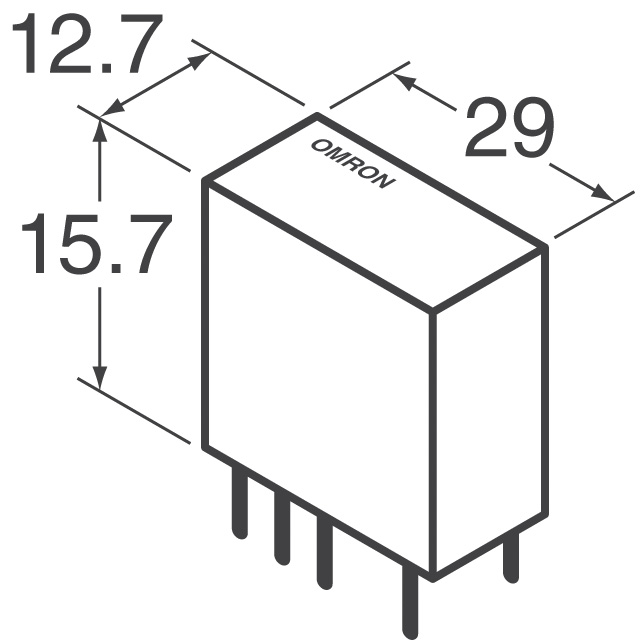

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
G2RL-1-E DC12 | ||
|---|---|---|
Digi-Key Part Number | Z2834-ND | |
Manufacturer | ||
Manufacturer Product Number | G2RL-1-E DC12 | |
Description | RELAY GEN PURPOSE SPDT 16A 12V | |
Manufacturer Standard Lead Time | 14 Weeks | |
Detailed Description | General Purpose Relay SPDT (1 Form C) 12VDC Coil Through Hole | |
Customer Reference | ||
Datasheet | Datasheet | |
EDA/CAD Models | G2RL-1-E DC12 Models | |
Product Attributes
Type | Description | Select All |
|---|---|---|
Category | ||
Mfr | ||
Series | ||
Package | Tube | |
Product Status | Active | |
Mounting Type | ||
Coil Voltage | ||
Contact Form | SPDT (1 Form C) | |
Contact Rating (Current) | 16 A | |
Switching Voltage | 440VAC, 300VDC - Max | |
Coil Current | 33.3 mA | |
Coil Type | Non Latching | |
Features | - | |
Termination Style | PC Pin | |
Seal Rating | Sealed - Flux Protection | |
Coil Insulation | Class F | |
Must Operate Voltage | 8.4 VDC | |
Must Release Voltage | 1.2 VDC | |
Operate Time | 15 ms | |
Release Time | 5 ms | |
Operating Temperature | -40°C ~ 85°C | |
Contact Material | Silver Alloy, Cadmium Free | |
Relay Type | ||
Coil Resistance | 360 Ohms | |
Base Product Number |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheets | G2RL Series Datasheet |
| Other Related Documents | How to Read Date Codes |
| Video File | How to Choose a Relay - Another Teaching Moment Relay Basics - Another Teaching Moment | DigiKey Electronics |
| CAD Models | G2RL-1-E DC12 Models |
| EDA Models | G2RL-1-E DC12 Models |
| Product Drawings |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | Not Applicable |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8536.41.0050 |
In-Stock: 11,784
Quantity
All prices are in USD
Tube
| Qty | Unit Price | Ext Price |
|---|---|---|
| 1 | $3.54000 | $3.54 |
| 10 | $3.32000 | $33.20 |
| 25 | $2.95080 | $73.77 |
| 50 | $2.80320 | $140.16 |
| 100 | $2.65570 | $265.57 |
| 250 | $2.36064 | $590.16 |
| 500 | $2.21312 | $1,106.56 |
| 1,000 | $2.06557 | $2,065.57 |
| 5,000 | $1.99180 | $9,959.00 |
Additional Resources
| Attribute | Description |
|---|---|
| Other Names | G2RL-1-E-DC12-ND G2RL-1-E-DC12 G2RL1EDC12 G6K 1304E G2RL1EDC12BYOMB Z2834 G2RL-1-E DC12 BY OMB G2RL1E12DC |
| Standard Package | 20 |
