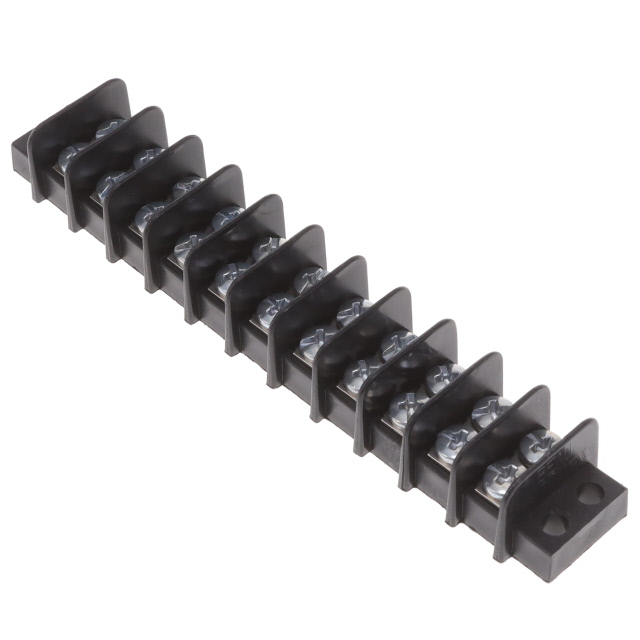

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
0387600111 | ||
|---|---|---|
Digi-Key Part Number | WM23137-ND | |
Manufacturer | ||
Manufacturer Product Number | 0387600111 | |
Description | CONN BARRIER STRP 11CIRC 0.375" | |
Manufacturer Standard Lead Time | 13 Weeks | |
Detailed Description | 11 Circuit 0.375" (9.53mm) Barrier Block Connector Screws | |
Customer Reference | ||
Datasheet | Datasheet | |
EDA/CAD Models | 0387600111 Models | |
Product Attributes
Type | Description | Select All |
|---|---|---|
Category | ||
Mfr | Molex | |
Series | ||
Package | Tray | |
Product Status | Active | |
Terminal Block Type | Barrier Block | |
Number of Circuits | 11 | |
Number of Wire Entries | 22 | |
Pitch | 0.375" (9.53mm) | |
Number of Rows | 2 | |
Current Rating (Amps) | 15A | |
Voltage Rating | 300V | |
Wire Gauge | 14-22 AWG | |
Top Termination | Screws | |
Bottom Termination | Closed | |
Barrier Type | 2 Wall (Dual) | |
Features | Flange | |
Color | Black | |
Terminal Screw Material | Steel | |
Terminal Screw Finish | Zinc, Clear Chromate | |
Mounting Type | Chassis, Panel | |
Operating Temperature | - | |
Material - Insulation | Thermoplastic | |
Material Flammability Rating | UL94 V-0 | |
Base Product Number |
Documents & Media
| Resource Type | Link |
|---|---|
| CAD Models | 0387600111 Models |
| PCN Assembly/Origin | Mult Devs Supplier 19/Sep/2022 |
| HTML Datasheet | 38760-0(1,2,3)zz Drawing |
| 3D Drawings | 38760-0111.pdf |
| Product Drawings | 38760-0(1,2,3)zz Drawing |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Affected |
| ECCN | EAR99 |
| HTSUS | 8536.90.4000 |
Quantity
All prices are in USD
Tray
| Qty | Unit Price | Ext Price |
|---|---|---|
| 1 | $5.74000 | $5.74 |
| 10 | $4.37500 | $43.75 |
| 25 | $4.09760 | $102.44 |
| 50 | $3.64240 | $182.12 |
| 100 | $3.56330 | $356.33 |
| 250 | $3.28612 | $821.53 |
| 500 | $2.96940 | $1,484.70 |
| 1,000 | $2.63287 | $2,632.87 |
Manufacturers Standard Package
Additional Resources
| Attribute | Description |
|---|---|
| Other Names | 76011 WM23137 38760-0111 387600111 038760-0111 0387600111-ND |
| Standard Package | 10 |
