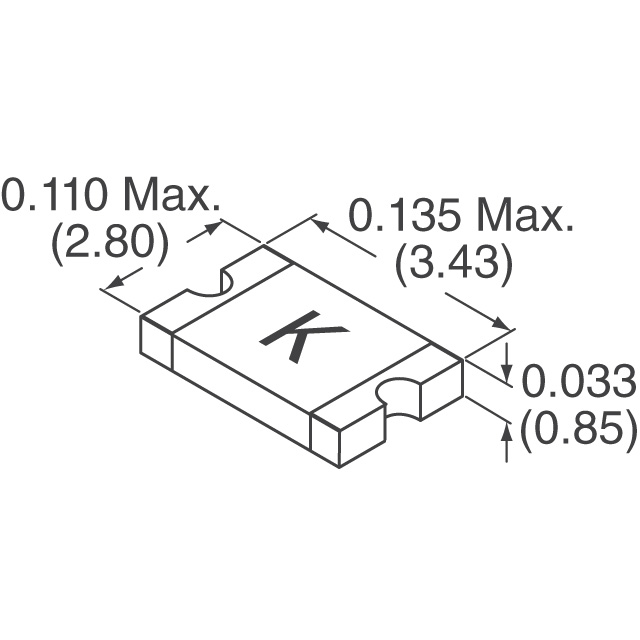

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
1210L050YR | ||
|---|---|---|
Digi-Key Part Number | F2998TR-ND - Tape & Reel (TR) F2998CT-ND - Cut Tape (CT) F2998DKR-ND - Digi-Reel® | |
Manufacturer | ||
Manufacturer Product Number | 1210L050YR | |
Description | PTC RESET FUSE 13.2V 500MA 1210 | |
Manufacturer Standard Lead Time | 13 Weeks | |
Detailed Description | Polymeric PTC Resettable Fuse 13.2V 500 mA Ih Surface Mount 1210 (3225 Metric), Concave | |
Customer Reference | ||
Datasheet | Datasheet | |
EDA/CAD Models | 1210L050YR Models | |
Product Attributes
Type | Description | Select All |
|---|---|---|
Category | ||
Mfr | Littelfuse Inc. | |
Series | ||
Package | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® | |
Product Status | Active | |
Type | Polymeric | |
Voltage - Max | 13.2V | |
Current - Hold (Ih) (Max) | 500 mA | |
Current - Trip (It) | 1 A | |
Current - Max | 100 A | |
Time to Trip | 50 ms | |
Resistance - Initial (Ri) (Min) | 250 mOhms | |
Resistance - Post Trip (R1) (Max) | 900 mOhms | |
Operating Temperature | -40°C ~ 85°C | |
Ratings | - | |
Mounting Type | Surface Mount | |
Package / Case | 1210 (3225 Metric), Concave | |
Size / Dimension | 0.127" L x 0.102" W (3.22mm x 2.58mm) | |
Height - Seated (Max) | - | |
Thickness (Max) | 0.033" (0.85mm) | |
Lead Spacing | - | |
Approval Agency | cURus, TUV |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheets | 1210L Series Datasheet |
| Video File | Basics of NTC and PTC Thermistors - Another Teaching Moment Building Automation – Protect/Sense/Control |
| Environmental Information | RoHS 3 Cert 1210L050YR |
| Featured Product | Circuit Protection Portfolio |
| HTML Datasheet | 1210L Series Datasheet |
| EDA Models | 1210L050YR Models |
| Product Drawings |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8533.40.8070 |
| California Prop 65 |  Warning Information |
In-Stock: 10,950
Quantity
All prices are in USD
Cut Tape (CT) & Digi-Reel®
| Qty | Unit Price | Ext Price |
|---|---|---|
| 1 | $0.52000 | $0.52 |
| 5 | $0.50400 | $2.52 |
| 10 | $0.48900 | $4.89 |
| 50 | $0.41140 | $20.57 |
| 100 | $0.34150 | $34.15 |
| 250 | $0.31048 | $77.62 |
| 500 | $0.26390 | $131.95 |
| 1,000 | $0.23286 | $232.86 |
Tape & Reel (TR)
| Qty | Unit Price | Ext Price |
|---|---|---|
| 4,000 | $0.21345 | $853.80 |
| 8,000 | $0.20957 | $1,676.56 |
| 12,000 | $0.20181 | $2,421.72 |
Manufacturers Standard Package
Additional Resources
| Attribute | Description |
|---|---|
| Other Names | 1210L050YR-ND F2998DKR F2998CT F2998TR |
| Standard Package | 4,000 |
