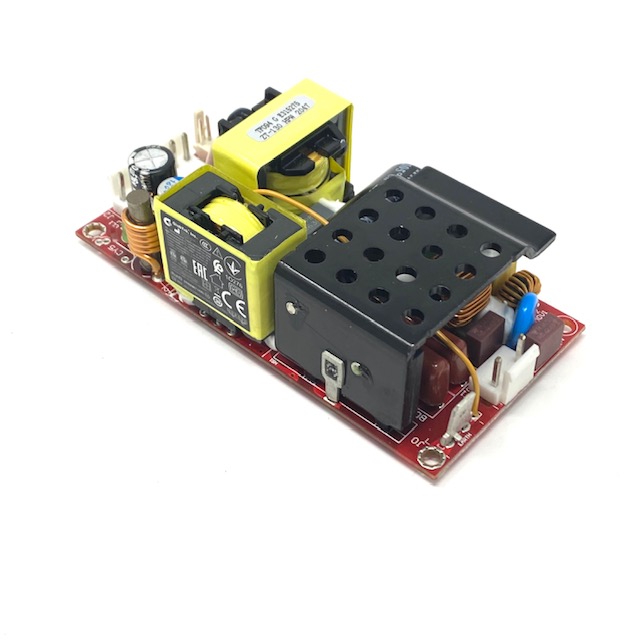

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
GTM962250P22524A-F | ||
|---|---|---|
Digi-Key Part Number | 1939-GTM962250P22524A-F-ND | |
Manufacturer | ||
Manufacturer Product Number | GTM962250P22524A-F | |
Description | AC/DC CONVERTER 24V 225W | |
Detailed Description | Open Frame AC DC Converters 1 Output 24V 85 ~ 264 VAC Input | |
Customer Reference | ||
Datasheet | Datasheet | |
Product Attributes
Type | Description | Select All |
|---|---|---|
Category | ||
Mfr | ||
Series | ||
Package | Box | |
Product Status | Active | |
Type | Open Frame | |
Number of Outputs | 1 | |
Voltage - Input | 85 ~ 264 VAC | |
Voltage - Output 1 | 24V | |
Voltage - Output 2 | - | |
Voltage - Output 3 | - | |
Voltage - Output 4 | - | |
Voltage - Output 5 | - | |
Voltage - Output 6 | - | |
Current - Output 1 | 9.37 A | |
Power (Watts) | ||
Applications | Household Appliances, ITE (Commercial), Medical | |
Voltage - Isolation | 4 kV | |
Efficiency | 95% | |
Operating Temperature | -25°C ~ 80°C (With Derating) | |
Features | Adjustable Output | |
Mounting Type | Chassis Mount | |
Size / Dimension | 4.00" L x 2.00" W x 1.22" H (101.6mm x 50.8mm x 31.0mm) | |
Approval Agency | CB, CE, cETLus, EAC, ETL, UKCA, Ukraine, VCCI, WEEE | |
Standard Number | 60335-1; 60601-1; 60950-1; 62368-1 | |
Minimum Load Required | No |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheets | EC Declaration of Conformity |
| Environmental Information |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | Not Applicable |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8504.40.9530 |
In-Stock: 36
Quantity
All prices are in USD
Box
| Qty | Unit Price | Ext Price |
|---|---|---|
| 1 | $71.99000 | $71.99 |
| 5 | $69.81200 | $349.06 |
| 10 | $67.63000 | $676.30 |
| 25 | $65.44800 | $1,636.20 |
| 50 | $63.26640 | $3,163.32 |
| 100 | $61.08480 | $6,108.48 |
Additional Resources
| Attribute | Description |
|---|---|
| Other Names | 1939-GTM962250P22524A-F |
| Standard Package | 40 |
