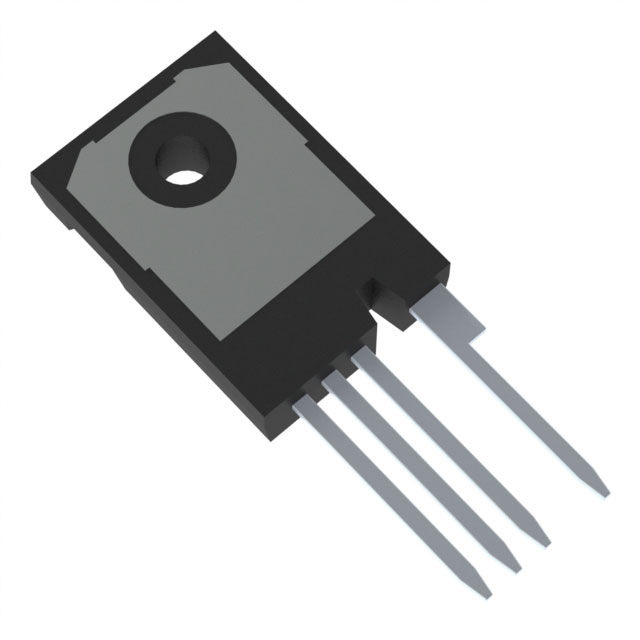

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
G3R30MT12K | ||
|---|---|---|
Digi-Key Part Number | 1242-G3R30MT12K-ND | |
Manufacturer | ||
Manufacturer Product Number | G3R30MT12K | |
Description | SIC MOSFET N-CH 90A TO247-4 | |
Manufacturer Standard Lead Time | 26 Weeks | |
Detailed Description | N-Channel 1200 V 90A (Tc) 400W (Tc) Through Hole TO-247-4 | |
Customer Reference | ||
Datasheet | Datasheet | |
Product Attributes
Type | Description | Select All |
|---|---|---|
Category | ||
Mfr | ||
Series | ||
Package | Tube | |
Product Status | Active | |
FET Type | ||
Technology | ||
Drain to Source Voltage (Vdss) | 1200 V | |
Current - Continuous Drain (Id) @ 25°C | ||
Drive Voltage (Max Rds On, Min Rds On) | 15V | |
Rds On (Max) @ Id, Vgs | 36mOhm @ 50A, 15V | |
Vgs(th) (Max) @ Id | 2.69V @ 12mA | |
Gate Charge (Qg) (Max) @ Vgs | 155 nC @ 15 V | |
Vgs (Max) | ±15V | |
Input Capacitance (Ciss) (Max) @ Vds | 3901 pF @ 800 V | |
FET Feature | - | |
Power Dissipation (Max) | 400W (Tc) | |
Operating Temperature | -55°C ~ 175°C (TJ) | |
Mounting Type | Through Hole | |
Supplier Device Package | TO-247-4 | |
Package / Case | ||
Base Product Number |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheets | G3R30MT12K |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| ECCN | EAR99 |
| HTSUS | 8541.29.0095 |
In-Stock: 944
Quantity
All prices are in USD
Tube
| Qty | Unit Price | Ext Price |
|---|---|---|
| 1 | $22.53000 | $22.53 |
| 10 | $20.70200 | $207.02 |
| 25 | $20.01520 | $500.38 |
| 100 | $19.01910 | $1,901.91 |
| 250 | $18.38908 | $4,597.27 |
| 500 | $17.92608 | $8,963.04 |
Additional Resources
| Attribute | Description |
|---|---|
| Other Names | 1242-G3R30MT12K |
| Standard Package | 30 |
