60DAW_2412S1.6 is Obsolete and no longer manufactured.

Available Substitutes:

Similar

TEN 60-2412N
Traco Power
In Stock: 31
Unit Price: $109.40000
Datasheet
View and Compare All Substitutes
60DAW_4803S1.6

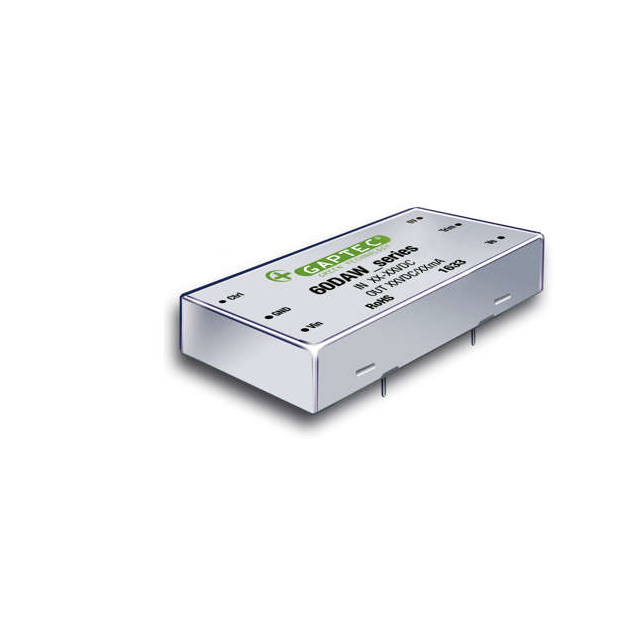

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

60DAW_2412S1.6

Digi-Key Part Number
3182-60DAW_2412S1.6-ND
Manufacturer
GAPTEC Electronic
Manufacturer Product Number
60DAW_2412S1.6
Description
DC-DC
Detailed Description
Isolated Module DC DC Converter 1 Output 12V 5A 18V - 36V Input
Customer Reference
Datasheet Datasheet
Product Attributes
Type
Description
Select All
Category
Mfr
GAPTEC Electronic
Series
60DAW_1.6 (60W)
Package
Tube
Product Status
Obsolete
Type
Isolated Module
Number of Outputs
1
Voltage - Input (Min)
18V
Voltage - Input (Max)
36V
Voltage - Output 1
12V
Voltage - Output 2
-
Voltage - Output 3
-
Voltage - Output 4
-
Current - Output (Max)
5A
Power (Watts)
60 W
Voltage - Isolation
1.6 kV
Applications
ITE (Commercial)
Features
Remote On/Off
Operating Temperature
-40°C ~ 85°C (With Derating)
Efficiency
89%
Mounting Type
Through Hole
Package / Case
6-DIP Module
Size / Dimension
2.00" L x 1.00" W x 0.52" H (50.8mm x 25.4mm x 13.1mm)
Supplier Device Package
-
Control Features
-
Approval Agency
CE
Standard Number
-
Documents & Media
Resource TypeLink
Datasheets60DAW_1.6 Series Datasheet
PCN Obsolescence/ EOL
HTML Datasheet60DAW_1.6 Series Datasheet
Environmental & Export Classifications
AttributeDescription
Moisture Sensitivity Level (MSL)Not Applicable
ECCNEAR99
HTSUS8504.40.9580
Obsolete
Additional Resources
AttributeDescription
Other Names3182-60DAW_2412S1.6
Standard Package5
Substitutes (1)
Part No.ManufacturerQuantity AvailableDigi-Key Part No.Unit PriceSubstitute Type
TEN 60-2412NTraco Power311951-1580-ND$109.40000Similar
