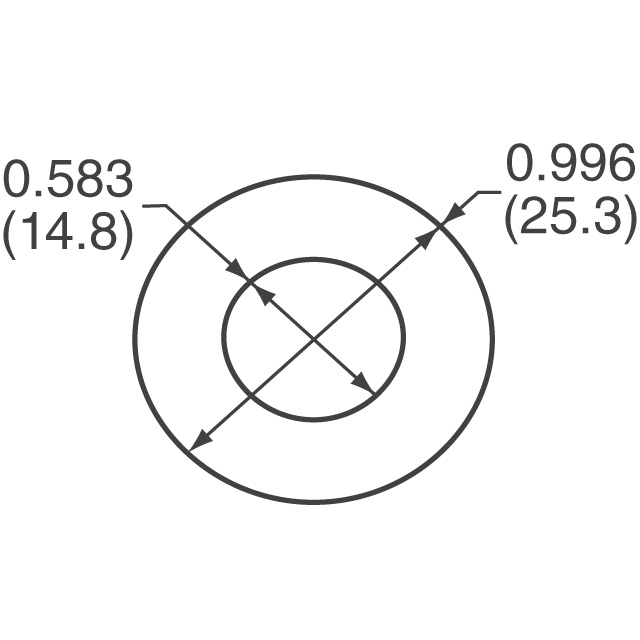

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
B64290L0618X038 | ||
|---|---|---|
Digi-Key Part Number | 495-3861-ND | |
Manufacturer | ||
Manufacturer Product Number | B64290L0618X038 | |
Description | FERRITE CORE TOROID 10.7UH T38 | |
Manufacturer Standard Lead Time | 19 Weeks | |
Detailed Description | Epoxy T38 Ferrite Core Toroid Type Length Width 1.047" (26.60mm) Diameter 0.433" (11.00mm) Height | |
Customer Reference | ||
Datasheet | Datasheet | |
EDA/CAD Models | B64290L0618X038 Models | |
Product Attributes
Type | Description | Select All |
|---|---|---|
Category | ||
Mfr | EPCOS - TDK Electronics | |
Series | ||
Package | Bulk | |
Product Status | Active | |
Core Type | Toroid | |
Supplier Device Package | - | |
Material | T38 | |
Diameter | 1.047" (26.60mm) | |
Inductance Factor (Al) | 10.7 µH | |
Tolerance | ±30% | |
Gap | Ungapped | |
Initial Permeability (µi) | 10000 | |
Core Factor (ΣI/A) mm⁻¹ | 1.17 | |
Effective Length (le) mm | 60.07 | |
Effective Area (Ae) mm² | 51.26 | |
Effective Magnetic Volume (Ve) mm³ | 3079 | |
Finish | Epoxy | |
Height | 0.433" (11.00mm) | |
Length | - | |
Width | - |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheets | |
| Environmental Information | |
| Featured Product | Ferrite Cores and Accessories |
| CAD Models | B64290L0618X038 Models |
| HTML Datasheet | |
| Product Drawings |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | Not Applicable |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8504.90.9630 |
In-Stock: 1,782
Quantity
All prices are in USD
Bulk
| Qty | Unit Price | Ext Price |
|---|---|---|
| 1 | $2.74000 | $2.74 |
| 10 | $2.36500 | $23.65 |
| 25 | $1.79760 | $44.94 |
| 50 | $1.70320 | $85.16 |
| 100 | $1.51390 | $151.39 |
| 250 | $1.41924 | $354.81 |
| 500 | $1.32464 | $662.32 |
| 1,000 | $1.21583 | $1,215.83 |
| 5,000 | $1.18271 | $5,913.55 |
Manufacturers Standard Package
Additional Resources
| Attribute | Description |
|---|---|
| Other Names | B64290L 618X 38 B64290L618X38 495-3861 |
| Standard Package | 500 |
