NQB-420DWA-ANH CUI Inc. | Power Supplies - Board Mount

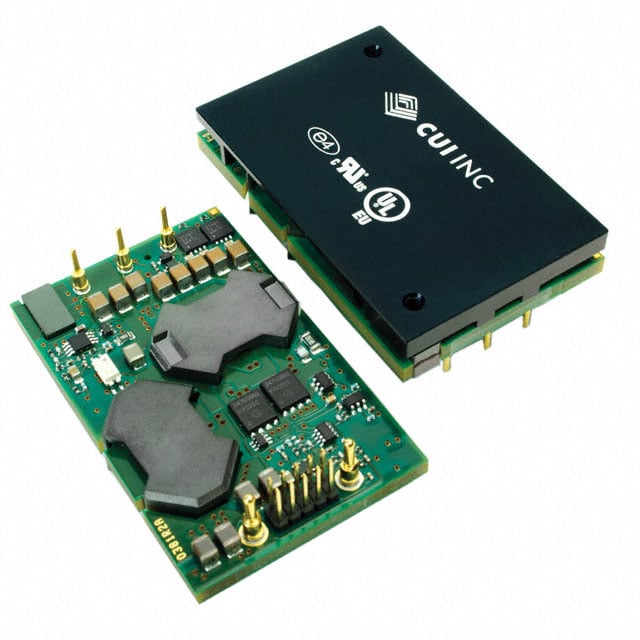

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

NQB-420DWA-ANH
Digi-Key Part Number	102-2678-ND
Manufacturer	CUI Inc.
Manufacturer Product Number	NQB-420DWA-ANH
Description	DC DC CONVERTER 12V 420W
Detailed Description	Intermediate Bus Converter, Digital DC DC Converter 1 Output 12V 35A 36V - 75V Input
Customer Reference
Datasheet	Datasheet

Product Attributes

Type	Description	Select All
Category	Power Supplies - Board Mount DC DC Converters
Mfr	CUI Inc.
Series	Novum®, NQB-D
Package	Box
Product Status	Obsolete
Type	Intermediate Bus Converter, Digital
Number of Outputs	1
Voltage - Input (Min)	36V
Voltage - Input (Max)	75V
Voltage - Output 1	12V
Voltage - Output 2	-
Voltage - Output 3	-
Current - Output (Max)	35A
Power (Watts)	420 W
Voltage - Isolation	2.25 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OTP, OVP, UVLO
Operating Temperature	-40°C ~ 125°C
Efficiency	96.4%
Mounting Type	Through Hole
Package / Case	15-DIP Module, 1/4 Brick
Size / Dimension	2.28" L x 1.45" W x 0.52" H (57.9mm x 36.8mm x 13.2mm)
Control Features	Enable, Active Low
Base Product Number	NQB-420

Documents & Media

Resource Type	Link
Datasheets	NQB-D
Other Related Documents	Power Supply Safety Standards, Agencies, and Marks
Product Training Modules	EMI Regulations and Mitigation Considerations for Switching Power Supplies Reliability Considerations for Power Supplies Thermal Management of Power Supplies
Video File	Advanced Intermediate Bus Converters
Environmental Information	NQB-D Cert of RoHS
Featured Product	Power Solutions
HTML Datasheet	NQB-D Series
