PEX8604-BA50Bx G
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
PEX8604-BA50Bx G

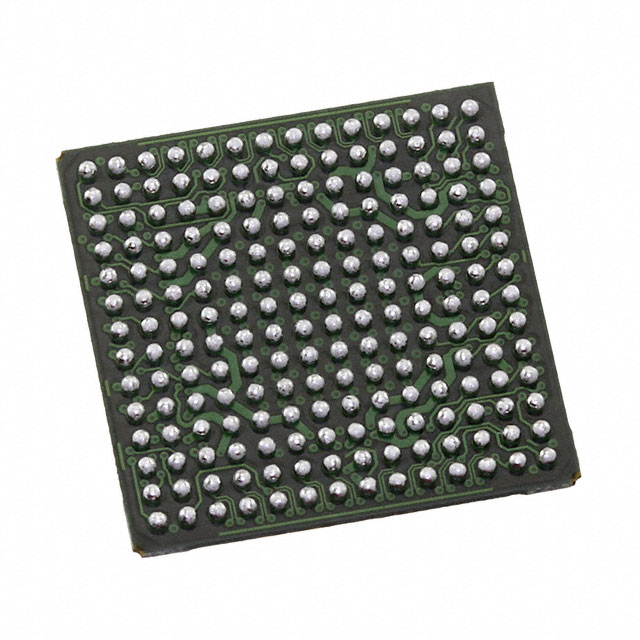

PEX8604-BA50Bx-G_View2

PEX8604-BA50BI G

Digi-Key Part Number
516-3382-ND
Manufacturer
Broadcom Limited
Manufacturer Product Number
PEX8604-BA50BI G
Description
IC PCI EXPRESS SWITCH 196BGA
Manufacturer Standard Lead Time
50 Weeks
Detailed Description
PCI Express® Switch IC 4 Channel 196-BGA (15x15)
Customer Reference
Datasheet
 Datasheet
EDA/CAD Models
PEX8604-BA50BI G Models
Product Attributes
Type
Description
Select All
Category
Mfr
Broadcom Limited
Series
ExpressLane™
Package
Tray
Product Status
Active
Applications
PCI Express®
Multiplexer/Demultiplexer Circuit
-
Switch Circuit
-
Number of Channels
4
On-State Resistance (Max)
-
Voltage - Supply, Single (V+)
-
Voltage - Supply, Dual (V±)
-
-3db Bandwidth
-
Features
Configurable
Operating Temperature
-
Mounting Type
Surface Mount
Package / Case
-
Supplier Device Package
196-BGA (15x15)
Base Product Number
PEX8604
Documents & Media
Resource TypeLink
DatasheetsPEX8604 Brief
PCN Design/SpecificationMult Dev Marking Chgs 15/Nov/2021
PCN Assembly/OriginPEX860x-BA50Bx 31/Mar/2022
EDA ModelsPEX8604-BA50BI G Models
Environmental & Export Classifications
AttributeDescription
RoHS StatusROHS3 Compliant
Moisture Sensitivity Level (MSL)3 (168 Hours)
REACH StatusREACH Unaffected
ECCN5A991B1
HTSUS8542.39.0001
In-Stock: 11,840
Quantity
All prices are in USD
Tray
QtyUnit PriceExt Price
1$36.89000$36.89
10$34.41700$344.17
25$32.97440$824.36
80$29.88313$2,390.65
230$28.85265$6,636.11
Note: Due to Digi-Key value-add services the packaging type may change when product is purchased at quantities beneath the standard package.
You May Also Be Interested InSee All 4
Additional Resources
AttributeDescription
Other Names
Q10174338B
516-3382
Standard Package630
