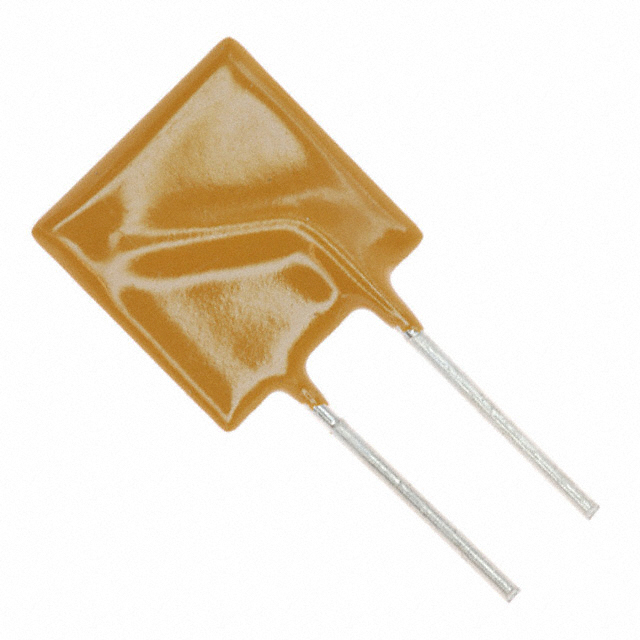

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
MF-R250-2 | ||
|---|---|---|
Digi-Key Part Number | 118-MF-R250-2TR-ND - Tape & Reel (TR) 118-MF-R250-2CT-ND - Cut Tape (CT) | |
Manufacturer | ||
Manufacturer Product Number | MF-R250-2 | |
Description | PTC RESET FUSE 30V 2.5A RADIAL | |
Manufacturer Standard Lead Time | 5 Weeks | |
Detailed Description | Polymeric PTC Resettable Fuse 30V 2.5 A Ih Through Hole Radial, Disc | |
| Customer Reference | ||
| Datasheet | Datasheet | |
Product Attributes
Type | Description | Select |
|---|---|---|
Category | ||
Mfr | Bourns Inc. | |
Series | ||
Package | Tape & Reel (TR) Cut Tape (CT) | |
Product Status | Active | |
Type | Polymeric | |
Voltage - Max | 30V | |
Current - Hold (Ih) (Max) | 2.5 A | |
Current - Trip (It) | 5 A | |
Current - Max | 40 A | |
Time to Trip | 10.3 s | |
Resistance - Initial (Ri) (Min) | 25 mOhms | |
Resistance - Post Trip (R1) (Max) | 70 mOhms | |
Operating Temperature | -40°C ~ 85°C | |
Ratings | - | |
Mounting Type | Through Hole | |
Package / Case | Radial, Disc | |
Size / Dimension | 0.472" L x 0.118" W (12.00mm x 3.00mm) | |
Height - Seated (Max) | 0.720" (18.30mm) | |
Thickness (Max) | - | |
Lead Spacing | 0.201" (5.10mm) | |
Approval Agency | cURus, TUV | |
Base Product Number |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheets | |
| Product Training Modules | |
| Video File | Basics of NTC and PTC Thermistors - Another Teaching Moment |
| Environmental Information | |
| CAD Models | MF-R250.stp |
| PCN Design/Specification | MF Cert Mark Aug/2015 |
| PCN Packaging | Polymer PTC 18/Dec/2018 |
| Product Drawings |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8533.40.8070 |
| California Prop 65 |  Warning Information |
1,652 In Stock
All prices are in USD
Cut Tape (CT)
| Qty | Unit Price | Ext Price |
|---|---|---|
| 1 | $0.81000 | $0.81 |
| 5 | $0.78800 | $3.94 |
| 10 | $0.76400 | $7.64 |
| 50 | $0.64240 | $32.12 |
| 100 | $0.53330 | $53.33 |
| 250 | $0.48480 | $121.20 |
| 500 | $0.41208 | $206.04 |
Tape & Reel (TR)
| Qty | Unit Price | Ext Price |
|---|---|---|
| 1,500 | $0.35148 | $527.22 |
| 3,000 | $0.33330 | $999.90 |
| 7,500 | $0.32724 | $2,454.30 |
| 10,500 | $0.31512 | $3,308.76 |
Manufacturers Standard Package
You May Also Be Interested In
Additional Resources
| Attribute | Description |
|---|---|
| Other Names | MFR2502 MF-R250-2TR-ND 118-MF-R250-2TR MF-R250-2-ND MF-R250-2TR MF-R250-2CT 118-MF-R250-2DKR 118-MF-R250-2DKR-ND MF-R250-2CT-ND 118-MF-R250-2CT 118-MF-R250-2DKRINACTIVE |
| Standard Package | 1,500 |
