BCD-3951-17-4-006 is Obsolete and no longer manufactured.
Available Substitutes:
Similar
-Limited/MFG_BCD-3951-17-4-006.jpg "BCD-3951-17-4-006")

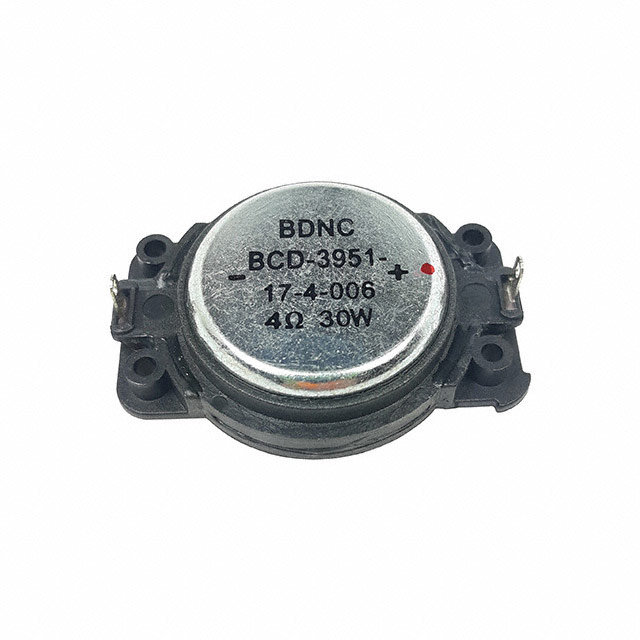

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
-Limited/BCD-3951-17-4-006.jpg "BCD-3951-17-4-006")
BCD-3951-17-4-006 | ||
|---|---|---|
Digi-Key Part Number | 2055-BCD-3951-17-4-006-ND | |
Manufacturer | ||
Manufacturer Product Number | BCD-3951-17-4-006 | |
Description | SPEAKER 4OHM 30W TOP PORT 86DB | |
Detailed Description | 4 Ohms Tweeter Speaker 30 W 500 Hz ~ 20 kHz Top Oval, Rectangular Frame | |
| Customer Reference | ||
| Datasheet | Datasheet | |
Product Attributes
Type | Description | Select |
|---|---|---|
Category | ||
Mfr | Glass Acoustic Innovations Co. Ltd. | |
Series | - | |
Package | Box | |
Product Status | Obsolete | |
Technology | Magnetic | |
Type | Tweeter | |
Frequency Range | 500 Hz ~ 20 kHz | |
Frequency - Self Resonant | 1.2kHz | |
Impedance | 4 Ohms | |
Efficiency - dBA | 86.00 | |
Efficiency - Testing | 1W/1M | |
Efficiency - Type | Sound Pressure Level (SPL) | |
Power - Rated | 30 W | |
Power - Max | 90 W | |
Port Location | Top | |
Shape | Oval, Rectangular Frame | |
Material - Cone | Cloth | |
Material - Magnet | Nd-Fe-B | |
Ingress Protection | - | |
Termination | Solder Pads | |
Height - Seated (Max) | 0.661" (16.80mm) |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheets | BCD-3951-17-4-006 |
| PCN Obsolescence/ EOL | BFC-4448-24-4-006, BCD-3951-17-4-006 11/Aug/2021 |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| ECCN | EAR99 |
| HTSUS | 8518.29.8000 |
Obsolete
-Limited/MFG_BGC-D40-22-4-002_tmb.jpg "BGC-D40-22-4-002")
Additional Resources
| Attribute | Description |
|---|---|
| Other Names | 2055-BCD-3951-17-4-006 |
| Standard Package | 25 |
Substitutes (1)
| Part No. | Manufacturer | Quantity Available | Digi-Key Part No. | Unit Price | Substitute Type |
|---|---|---|---|---|---|
| PL 5 RV - 4 OHM | Visaton GmbH & Co. KG | 32 | 2056-PL5RV-4OHM-ND | $28.70000 | Similar |
