Name: LTM8048MPY#PBF
Brand: Analog Devices Inc.
SKU: LTM8048MPY#PBF-ND
Price: 36.31 USD
Availability: InStock

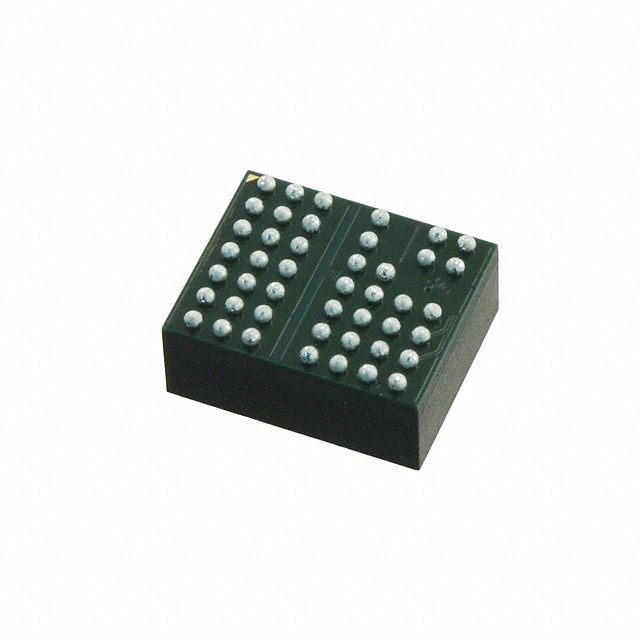

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

LTM8048MPY#PBF
Digi-Key Part Number	LTM8048MPY#PBF-ND
Manufacturer	Analog Devices Inc.
Manufacturer Product Number	LTM8048MPY#PBF
Description	DC DC CONVERTER 2.5-13V 1.2-12V
Manufacturer Standard Lead Time	13 Weeks
Detailed Description	Isolated Module DC DC Converter 2 Output 2.5 ~ 13V 1.2 ~ 12V 440mA, 300mA 3.1V - 32V Input
Customer Reference
Datasheet	Datasheet

Product Attributes

Type	Description	Select
Category	Power Supplies - Board Mount DC DC Converters
Mfr	Analog Devices Inc.
Series	µModule®
Package	Tray
Product Status	Active
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	3.1V
Voltage - Input (Max)	32V
Voltage - Output 1	2.5 ~ 13V
Voltage - Output 2	1.2 ~ 12V
Voltage - Output 3	-
Current - Output (Max)	440mA, 300mA
Voltage - Isolation	725 V
Applications	ITE (Commercial)
Features	-
Operating Temperature	-55°C ~ 125°C
Efficiency	-
Mounting Type	Surface Mount
Package / Case	45-BBGA Module
Size / Dimension	0.44" L x 0.35" W x 0.19" H (11.3mm x 9.0mm x 4.9mm)
Supplier Device Package	45-BGA (11.25x9)
Base Product Number	LTM8048

Documents & Media

Resource Type	Link
Datasheets	LTM8048
Product Training Modules	LTM8047 and LTM8048 1.5W, 725 VDC Isolated Micromodule Converter
Video File	Power µModule® Solutions Power µModule® Solutions
Reference Design Library	DC1560A: Isolated 5V @ 300mA, 4.5 ~ 30V in
PCN Design/Specification	Mark Conversion 21/Jul/2021
PCN Assembly/Origin	Mult Dev 28/Feb/2020
HTML Datasheet	LTM8048
EDA Models	LTM8048MPY#PBF by Ultra Librarian
