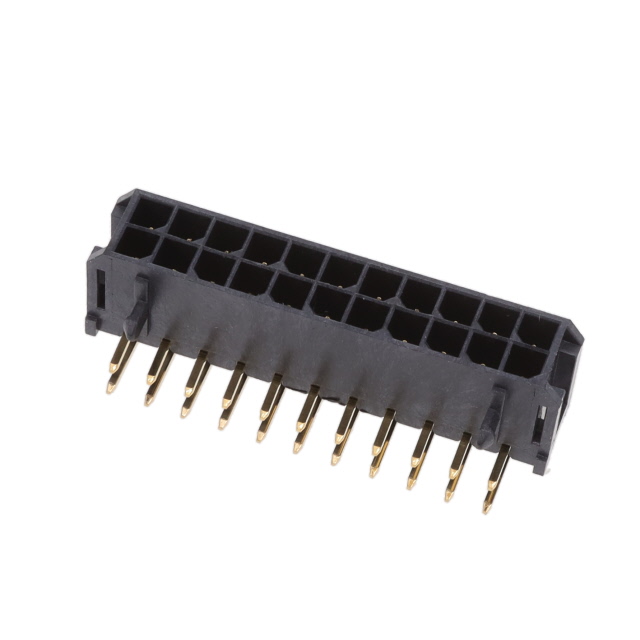

10127720-222LF | ||
|---|---|---|
Digi-Key Part Number | 609-10127720-222LF-ND | |
Manufacturer | ||
Manufacturer Product Number | 10127720-222LF | |
Description | CONN HEADER R/A 22POS 3MM | |
Manufacturer Standard Lead Time | 15 Weeks | |
Detailed Description | Connector Header Through Hole, Right Angle 22 position 0.118" (3.00mm) | |
| Customer Reference | ||
| Datasheet | Datasheet | |
Product Attributes
Type | Description | Select All |
|---|---|---|
Category | ||
Mfr | ||
Series | ||
Package | Tray | |
Product Status | Active | |
Connector Type | ||
Contact Type | Male Pin | |
Pitch - Mating | ||
Number of Positions | ||
Number of Rows | 2 | |
Row Spacing - Mating | ||
Number of Positions Loaded | All | |
Style | ||
Shrouding | Shrouded - 4 Wall | |
Mounting Type | ||
Termination | Solder | |
Fastening Type | Locking Ramp | |
Contact Length - Mating | - | |
Contact Length - Post | 0.126" (3.20mm) | |
Overall Contact Length | - | |
Insulation Height | 0.285" (7.25mm) | |
Contact Shape | Square | |
Contact Finish - Mating | Gold | |
Contact Finish Thickness - Mating | Flash | |
Contact Finish - Post | - | |
Contact Material | Copper Alloy | |
Insulation Material | Liquid Crystal Polymer (LCP) | |
Features | Board Lock | |
Operating Temperature | -40°C ~ 105°C | |
Ingress Protection | - | |
Material Flammability Rating | UL94 V-0 | |
Insulation Color | Black | |
Current Rating (Amps) | Varies by Wire Gauge | |
Voltage Rating | 600VAC/DC | |
Mated Stacking Heights | - | |
Contact Finish Thickness - Post | - | |
Applications | - | |
Base Product Number |
Documents & Media
| Resource Type | Link |
|---|---|
| Featured Product | |
| CAD Models | |
| PCN Design/Specification | Documentation Change 24/JAN/2022 |
| PCN Assembly/Origin | Multiple Devices Location 23/May/2019 |
| EDA Models | 10127720-222LF by SnapEDA |
| Product Drawings | 10127720 Series Drawing |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Affected |
| ECCN | EAR99 |
| HTSUS | 8536.69.4040 |
377 In Stock
All prices are in USD
Tray
| Qty | Unit Price | Ext Price |
|---|---|---|
| 1 | $1.79000 | $1.79 |
| 10 | $1.55600 | $15.56 |
| 150 | $1.39053 | $208.58 |
| 450 | $1.15878 | $521.45 |
| 1,050 | $0.99324 | $1,042.90 |
| 4,950 | $0.88067 | $4,359.32 |
| 10,050 | $0.86080 | $8,651.04 |
Manufacturers Standard Package
You May Also Be Interested In
Additional Resources
| Attribute | Description |
|---|---|
| Other Names | 609-10127720-222LF 10127720-222LF-ND |
| Standard Package | 150 |
