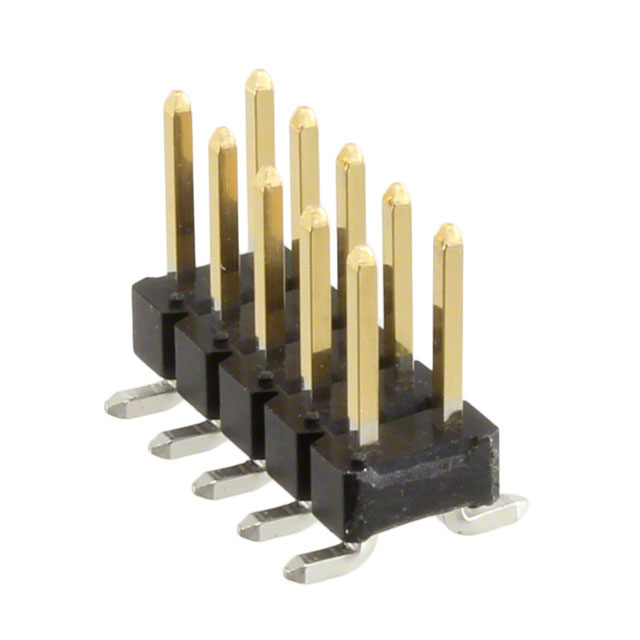

54202-G0805LF | ||
|---|---|---|
Digi-Key Part Number | 609-4723-ND | |
Manufacturer | ||
Manufacturer Product Number | 54202-G0805LF | |
Description | CONN HEADER SMD 10POS 2.54MM | |
Manufacturer Standard Lead Time | 8 Weeks | |
Detailed Description | Connector Header Surface Mount 10 position 0.100" (2.54mm) | |
| Customer Reference | ||
| Datasheet | Datasheet | |
Product Attributes
Type | Description | Select |
|---|---|---|
Category | ||
Mfr | ||
Series | ||
Package | Bag | |
Product Status | Active | |
Connector Type | ||
Contact Type | Male Pin | |
Pitch - Mating | ||
Number of Positions | ||
Number of Rows | 2 | |
Row Spacing - Mating | ||
Number of Positions Loaded | All | |
Style | ||
Shrouding | Unshrouded | |
Mounting Type | ||
Termination | Solder | |
Fastening Type | Push-Pull | |
Contact Length - Mating | 0.230" (5.84mm) | |
Contact Length - Post | - | |
Overall Contact Length | - | |
Insulation Height | 0.100" (2.54mm) | |
Contact Shape | Square | |
Contact Finish - Mating | Gold or Gold, GXT™ | |
Contact Finish Thickness - Mating | 30.0µin (0.76µm) | |
Contact Finish - Post | Tin | |
Contact Material | Phosphor Bronze | |
Insulation Material | - | |
Features | - | |
Operating Temperature | -65°C ~ 130°C | |
Ingress Protection | - | |
Material Flammability Rating | UL94 V-0 | |
Insulation Color | Black | |
Current Rating (Amps) | 3A | |
Voltage Rating | - | |
Mated Stacking Heights | - | |
Contact Finish Thickness - Post | 100.0µin (2.54µm) | |
Applications | - | |
Base Product Number |
Documents & Media
| Resource Type | Link |
|---|---|
| Featured Product | |
| CAD Models | |
| EDA Models | 54202-G0805LF by SnapEDA |
| Product Drawings | 54202 Series Drawing |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Affected |
| ECCN | EAR99 |
| HTSUS | 8536.69.4040 |
5,445 In Stock
All prices are in USD
Bag
| Qty | Unit Price | Ext Price |
|---|---|---|
| 1 | $0.82000 | $0.82 |
| 10 | $0.69300 | $6.93 |
| 100 | $0.62260 | $62.26 |
| 500 | $0.50940 | $254.70 |
| 1,000 | $0.45280 | $452.80 |
| 5,000 | $0.39620 | $1,981.00 |
| 10,000 | $0.37639 | $3,763.90 |
Manufacturers Standard Package
Additional Resources
| Attribute | Description |
|---|---|
| Other Names | 54202-G0805LF-ND 609-4723 2266-54202-G0805LF |
| Standard Package | 100 |
