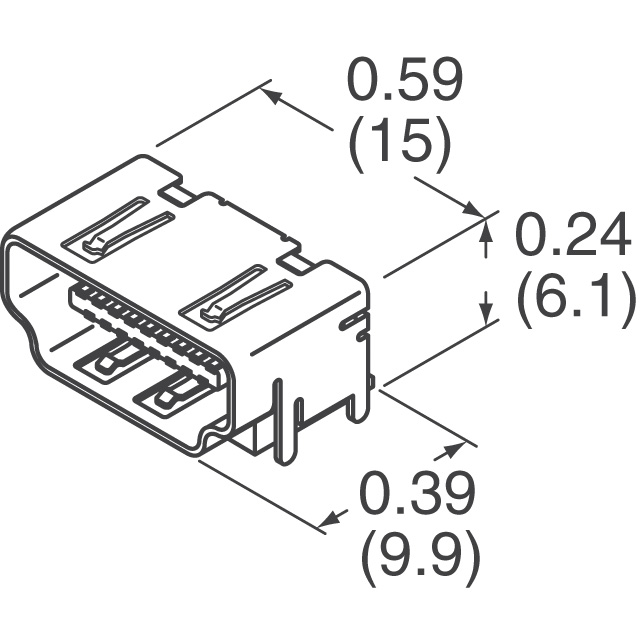

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
10029449-001RLF | ||
|---|---|---|
Digi-Key Part Number | 609-1010-2-ND - Tape & Reel (TR) 609-1010-1-ND - Cut Tape (CT) 609-1010-6-ND - Digi-Reel® | |
Manufacturer | ||
Manufacturer Product Number | 10029449-001RLF | |
Description | CONN RCPT 1.4 HDMI 19POS SMD R/A | |
Manufacturer Standard Lead Time | 7 Weeks | |
Detailed Description | HDMI HDMI 1.4 Receptacle Connector 19 Position Surface Mount, Right Angle; Through Hole | |
Customer Reference | ||
Datasheet | Datasheet | |
EDA/CAD Models | 10029449-001RLF Models | |
Product Attributes
Type | Description | Select All |
|---|---|---|
Category | ||
Mfr | Amphenol ICC (FCI) | |
Series | - | |
Package | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® | |
Product Status | Active | |
Connector Type | HDMI | |
Number of Contacts | 19 | |
Gender | Receptacle | |
Specifications | HDMI 1.4 | |
Mounting Type | Surface Mount, Right Angle; Through Hole | |
Mounting Feature | Horizontal | |
Termination | Solder | |
Features | - | |
Ingress Protection | - | |
Operating Temperature | -20°C ~ 85°C | |
Number of Ports | 1 | |
Current Rating (Amps) | 0.5A | |
Voltage - Rated | 40V | |
Mating Cycles | 10000 | |
Shielding | Shielded | |
Contact Finish | Gold, GXT™ | |
Shell/Shielding Material | Steel | |
Material Flammability Rating | UL94 V-0 | |
Insulation Color | Black | |
Base Product Number |
Documents & Media
| Resource Type | Link |
|---|---|
| Product Training Modules | I-O Connections Product Portfolio |
| CAD Models | 10029449-001RLF Models |
| PCN Design/Specification | HDMI Type A 22/Feb/2012 |
| EDA Models | 10029449-001RLF Models |
| Product Drawings |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Affected |
| ECCN | EAR99 |
| HTSUS | 8536.69.4040 |
In-Stock: 37,135
Quantity
All prices are in USD
Cut Tape (CT) & Digi-Reel®
| Qty | Unit Price | Ext Price |
|---|---|---|
| 1 | $2.45000 | $2.45 |
| 10 | $2.13300 | $21.33 |
| 25 | $2.04200 | $51.05 |
| 50 | $1.99640 | $99.82 |
| 100 | $1.90570 | $190.57 |
Tape & Reel (TR)
| Qty | Unit Price | Ext Price |
|---|---|---|
| 400 | $1.72423 | $689.69 |
| 800 | $1.54273 | $1,234.18 |
| 1,200 | $1.36123 | $1,633.48 |
| 2,000 | $1.31586 | $2,631.72 |
| 2,800 | $1.27048 | $3,557.34 |
Manufacturers Standard Package
.JPG "U.FL-R-SMT-1(10)")
Additional Resources
| Attribute | Description |
|---|---|
| Other Names | 2266-10029449-001RLFTR 609-1010-6 609-1010-1 609-1010-2 10029449001RLF Q5947048V 10029449-001LF |
| Standard Package | 400 |
