TJ0471560000G is available for purchase but is not normally stocked.
Available Substitutes:
Similar
Similar
Similar

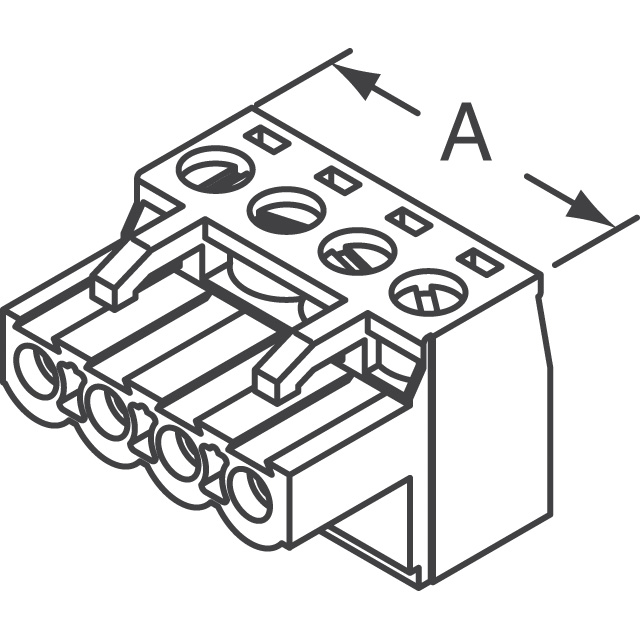

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
TJ0471560000G | ||
|---|---|---|
Digi-Key Part Number | 609-3843-ND | |
Manufacturer | ||
Manufacturer Product Number | TJ0471560000G | |
Description | TERM BLOCK PLUG 4POS STR 5MM | |
Manufacturer Standard Lead Time | 12 Weeks | |
Detailed Description | 4 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm) 180° Free Hanging (In-Line) | |
| Customer Reference | ||
| Datasheet | Datasheet | |
Product Attributes
Type | Description | Select All |
|---|---|---|
Category | ||
Mfr | Amphenol Anytek | |
Series | ||
Package | Bulk | |
Product Status | Active | |
Type | Plug, Female Sockets | |
Number of Positions | 4 | |
Positions Per Level | 4 | |
Number of Levels | 1 | |
Pitch | 0.197" (5.00mm) | |
Header Orientation | - | |
Plug Wire Entry | 180° | |
Termination Style | Screw - Rising Cage Clamp | |
Mounting Type | Free Hanging (In-Line) | |
Current - IEC | - | |
Current - UL | 12 A | |
Voltage - UL | 300 V | |
Wire Gauge or Range - AWG | 12-24 AWG | |
Wire Gauge or Range - mm² | 1-2.5mm² | |
Color | Green | |
Operating Temperature | -40°C ~ 115°C | |
Contact Mating Finish | Tin | |
Features | Retention Latches (Non-Wire Side) | |
Material Flammability Rating | UL94 V-0 | |
Ingress Protection | - | |
Screw Size | M3 | |
Torque - Screw | 0.56 Nm (5.0 Lb-In) | |
Wire Strip Length | 7-8mm | |
Contact Material | Copper Alloy | |
Housing Material | Thermoplastic Resin | |
Contact Tail Length | - | |
Insulation Height | 0.594" (15.09mm) | |
Base Product Number |
Documents & Media
| Resource Type | Link |
|---|---|
| Product Training Modules | Terminal Blocks |
| PCN Design/Specification | Multiple Devices Design 28/Apr/2014 |
| PCN Part Number | Anytek Integration 02/Apr/2015 |
| Product Drawings |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8536.69.4040 |
Available To Order
All prices are in USD
Bulk
| Qty | Unit Price | Ext Price |
|---|---|---|
| 2,160 | $0.69130 | $1,493.21 |
Manufacturers Standard Package
Associated Product
Additional Resources
| Attribute | Description |
|---|---|
| Other Names | TJ04715600J0G TJ0471560000GINACTIVE 609-3843 TJ0471560000G-ND 20020006-G041B01LF TJ04715600J0G-ND |
| Standard Package | 2,160 |
Substitutes (10)
| Part No. | Manufacturer | Quantity Available | Digi-Key Part No. | Unit Price | Substitute Type |
|---|---|---|---|---|---|
| 1786190 | Phoenix Contact | 5,355 | 277-5713-ND | $5.84000 | Similar |
| 1769036 | Phoenix Contact | 50 | 277-6772-ND | $5.72000 | Similar |
| 1779851 | Phoenix Contact | 2,470 | 277-5833-ND | $6.28000 | Similar |
| OSTTJ047150 | On Shore Technology Inc. | 3,021 | ED2781-ND | $2.35000 | Similar |
| 1911981 | Phoenix Contact | 1,114 | 277-9027-ND | $4.52000 | Similar |
