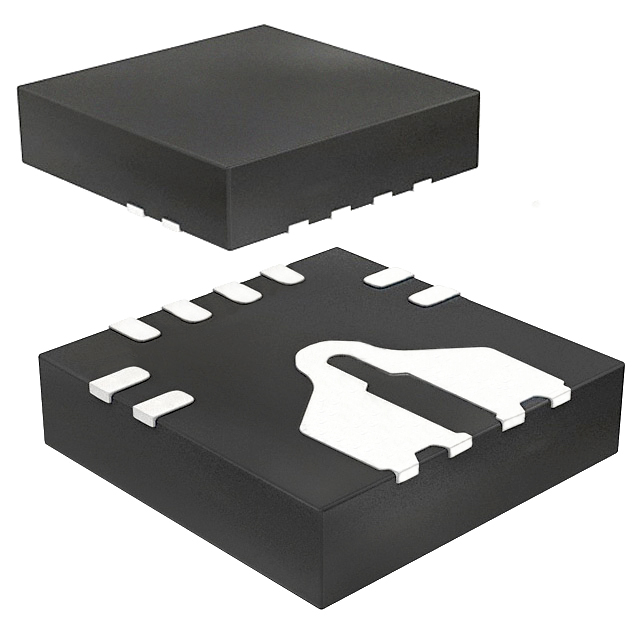

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
ACS711KEXLT-31AB-T | ||
|---|---|---|
Digi-Key Part Number | 620-1482-2-ND - Tape & Reel (TR) 620-1482-1-ND - Cut Tape (CT) 620-1482-6-ND - Digi-Reel® | |
Manufacturer | ||
Manufacturer Product Number | ACS711KEXLT-31AB-T | |
Description | SENSOR CURRENT HALL 31A AC/DC | |
Manufacturer Standard Lead Time | 12 Weeks | |
Detailed Description | Current Sensor 31A 1 Channel Hall Effect, Open Loop Bidirectional 12-PowerWFQFN | |
Customer Reference | ||
Datasheet | Datasheet | |
EDA/CAD Models | ACS711KEXLT-31AB-T Models | |
Product Attributes
Type | Description | Select All |
|---|---|---|
Category | ||
Mfr | ||
Series | - | |
Package | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® | |
Product Status | Active | |
For Measuring | AC/DC | |
Sensor Type | ||
Current - Sensing | ||
Number of Channels | 1 | |
Output | Ratiometric, Voltage | |
Sensitivity | 45mV/A | |
Frequency | DC ~ 100kHz | |
Linearity | ±1% | |
Accuracy | ±5% | |
Voltage - Supply | 3V ~ 5.5V | |
Response Time | 4.6µs | |
Current - Supply (Max) | 5.5mA | |
Operating Temperature | -40°C ~ 125°C | |
Polarization | Bidirectional | |
Mounting Type | ||
Package / Case | 12-PowerWFQFN | |
Supplier Device Package | 12-QFN (3x3) | |
Base Product Number |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheets | ACS711 |
| Product Training Modules | |
| Design Resources | |
| Featured Product | |
| PCN Packaging | Tape Change 27/Jan/2023 |
| HTML Datasheet | ACS711 |
| EDA Models | ACS711KEXLT-31AB-T Models |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
In-Stock: 81,901
Quantity
All prices are in USD
Cut Tape (CT) & Digi-Reel®
| Qty | Unit Price | Ext Price |
|---|---|---|
| 1 | $1.51000 | $1.51 |
| 10 | $1.13300 | $11.33 |
| 25 | $0.90640 | $22.66 |
| 100 | $0.83100 | $83.10 |
| 500 | $0.69882 | $349.41 |
Tape & Reel (TR)
| Qty | Unit Price | Ext Price |
|---|---|---|
| 1,500 | $0.62327 | $934.90 |
| 3,000 | $0.60438 | $1,813.14 |
| 7,500 | $0.53828 | $4,037.10 |
| 10,500 | $0.52884 | $5,552.82 |
| 15,000 | $0.51939 | $7,790.85 |
Manufacturers Standard Package
.jpg "LTST-C191KSKT")
_tmb.jpg "742792651")
Additional Resources
| Attribute | Description |
|---|---|
| Other Names | 620-1482-1 ACS711KEXLT31ABT 620-1482-2 620-1482-6 |
| Standard Package | 1,500 |
