Name: NHD-0216KZW-AB5
Brand: Newhaven Display Intl
SKU: NHD-0216KZW-AB5-ND
Price: 31.42 USD
Availability: InStock

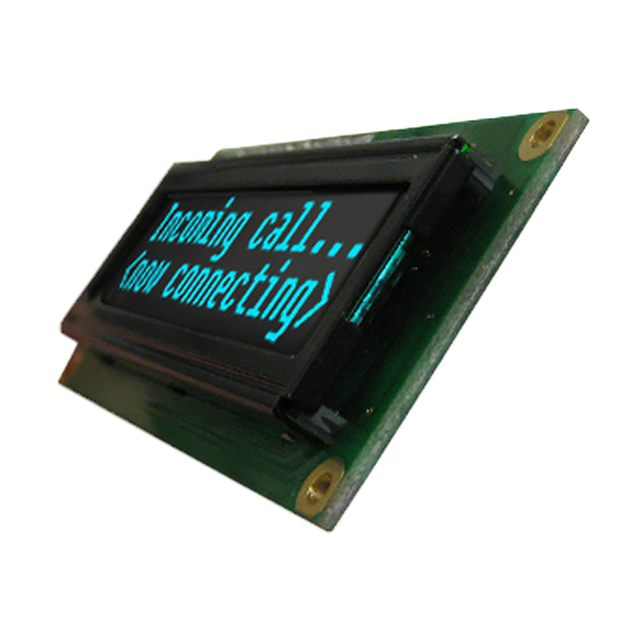

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

NHD-0216KZW-AB5
Digi-Key Part Number	NHD-0216KZW-AB5-ND
Manufacturer	Newhaven Display Intl
Manufacturer Product Number	NHD-0216KZW-AB5
Description	OLED MODULE 32DIG 16 X 2 PASSIVE
Manufacturer Standard Lead Time	28 Weeks
Detailed Description	Character Display Module Passive 5 x 8 Dots OLED Without Backlight Parallel/Serial 80.00mm x 36.00mm x 10.00mm
Customer Reference
Datasheet	Datasheet

Product Attributes

Type	Description	Select All
Category	Optoelectronics LCD, OLED Character and Numeric
Mfr	Newhaven Display Intl
Series	-
Package	Tray
Product Status	Active
Number of Characters	32
Display Format	16 x 2
Character Format	5 x 8 Dots
Display Type	OLED
Display Mode	Passive
Character Size	5.55mm H x 2.95mm W
Outline L x W x H	80.00mm x 36.00mm x 10.00mm
Viewing Area	66.00mm L x 16.00mm W
Backlight	Without Backlight
Voltage - Supply	4.8V ~ 5.3V
Dot Size	0.55mm W x 0.65mm H
Interface	Parallel/Serial
Operating Temperature	-40°C ~ 80°C
Text Color	Blue
Background Color	Black
Base Product Number	NHD-0216

Documents & Media

Resource Type	Link
Datasheets	NHD-0216KZW-AB5
Other Related Documents	LCD Safe Handling Procedure LCD Solvent Precautions
Product Training Modules	Character and Graphic OLED Displays LCDs and OLEDs Character and Graphic Display
Video File	How-To Create Custom LCD Characters
Design Resources	Custom Display Request Form Interface Selection Jumper Locations Serial Bit-Bang Control
Featured Product	Character and Graphic OLED Displays
