EFB0512HHA-R00 is available for purchase but is not normally stocked.
Available Substitutes:
Similar
Similar
Similar

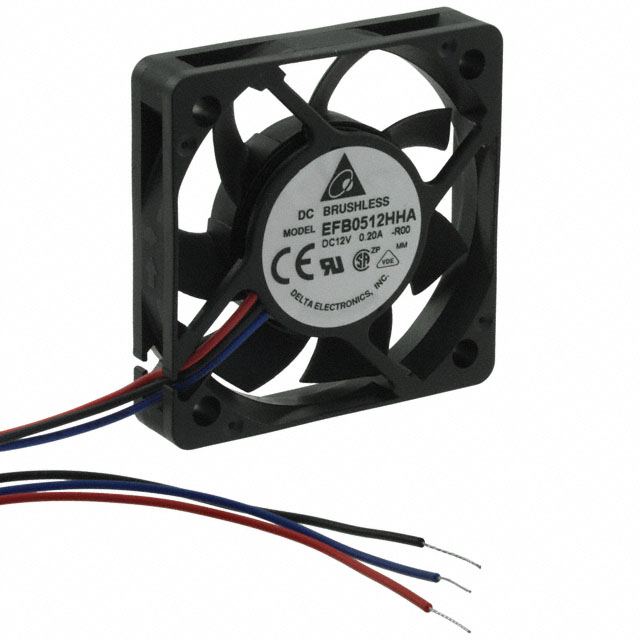

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
EFB0512HHA-R00 | ||
|---|---|---|
Digi-Key Part Number | 603-1583-ND | |
Manufacturer | ||
Manufacturer Product Number | EFB0512HHA-R00 | |
Description | FAN AXIAL 50X10MM 12VDC WIRE | |
Manufacturer Standard Lead Time | 32 Weeks | |
Detailed Description | Fan Tubeaxial 12VDC Square - 50mm L x 50mm H Ball 13.6 CFM (0.381m³/min) 3 Wire Leads | |
Customer Reference | ||
Datasheet | Datasheet | |
EDA/CAD Models | EFB0512HHA-R00 Models | |
Product Attributes
Type | Description | Select All |
|---|---|---|
Category | ||
Mfr | ||
Series | ||
Package | Bulk | |
Product Status | Active | |
Voltage - Rated | ||
Size / Dimension | Square - 50mm L x 50mm H | |
Width | 10.00mm | |
Air Flow | 13.6 CFM (0.381m³/min) | |
Static Pressure | 0.232 in H2O (57.8 Pa) | |
Bearing Type | Ball | |
Fan Type | ||
Features | Locked Rotor Sensor | |
Noise | 33.5dB(A) | |
Power (Watts) | 1.8 W | |
RPM | ||
Termination | 3 Wire Leads | |
Ingress Protection | - | |
Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) | |
Approval Agency | CE, CSA, UL, VDE | |
Weight | 0.057 lb (25.85 g) | |
Current Rating (Amps) | 0.150A | |
Voltage Range | 7 ~ 13.8VDC | |
Material - Frame | Plastic | |
Material - Blade | Plastic | |
Lifetime @ Temp. | 70000 Hrs @ 40°C | |
Base Product Number |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheets | EFB0512HHA-R00 Spec |
| Other Related Documents | |
| Product Training Modules | Fan Options |
| Environmental Information | Fans Cert of Compliance-RoHS |
| CAD Models | EFB0512HHA-R00 Models |
| Reliability Documents | EFB0512HHA-R00 MTBF Report |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8414.59.6590 |
Quantity
All prices are in USD
Bulk
| Qty | Unit Price | Ext Price |
|---|---|---|
| 984 | $7.95754 | $7,830.22 |
Associated Product
Substitutes (3)
| Part No. | Manufacturer | Quantity Available | Digi-Key Part No. | Unit Price | Substitute Type |
|---|---|---|---|---|---|
| CFM-5010-13-10 | CUI Devices | 396 | 102-4013-ND | $10.41000 | Similar |
| CFM-5010-13-20 | CUI Devices | 25 | 102-4401-ND | $9.92000 | Similar |
| CFM-5010-13-22 | CUI Devices | 5,120 | 102-4402-ND | $10.17000 | Similar |
Additional Resources
| Attribute | Description |
|---|---|
| Other Names | 603-1583 EFB0512HHAR00 |
| Standard Package | 492 |
